EVC30S40 & EVC70S40 series

EVC30S40 & EVC70S40 series

Modules for electric bread and pizza ovens
EVC30S40 and EVC70S40 are a range of modules for the management of electric bread and pizza ovens.

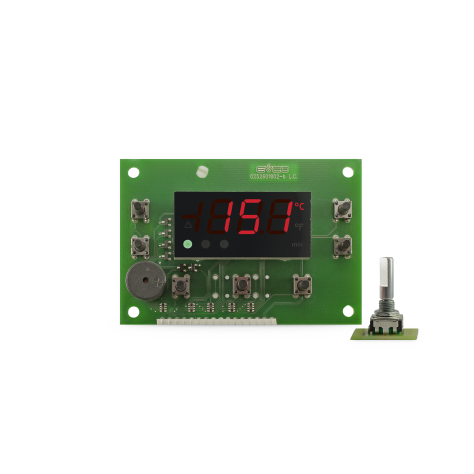

Available in compact version, the user interface consists of a display with function icons, 2 or 4 keys and an encoder option.
The modules function is to gradually transition from electromechanical to electronic management of an electric oven.
The modules are available with the following functions:
- 1 step controller
- “top-floor” controller
- cooking timer
- steam injection
The user interface installed from behind using threaded studs and a front film enables it to be placed flush with the panel thus making it fit perfectly with the design of the unit.
Technical sheet
Generate PDF

Technical Features

Modules with functions of 1 step controller

EVC30S40J7XXX00EVC30S40J7XXX01
Power supply
230 VAC
Analog inputs
room probe (J)
Digital outputs (electromechanical relays; res. A @ 250 VAC)
temperature regulation5 A5 A
auxiliary 5 A
Other features
number of keys 4
encoder
alarm buzzer

Notes
None.

Available options
None.

Modules with functions of “top-floor” controllers

EVC30S40J7XXX02EVC30S40J7XXX05
Power supply
230 VAC
Analog inputs
probe 1 (J) (1)
floor probe (J)
Digital outputs (electromechanical relays; res. A @ 250 VAC)
top5 A5 A
floor5 A5 A
Other features
number of keys42
encoder
alarm buzzer
independent management of the top and floor temperature
independent management of the power supplied to the top and the floor
“quick heating” function

Notes
(1)configurable for room probe or top probe.

Available options
None.

Modules with functions of cooking timer

EVC70S40X7XXX00EVC70S40X7XXX03
Digital outputs (electromechanical relays; res. A @ 250 VAC)
acoustic5 A5 A
Other features
number of keys4
encoder
alarm buzzer
Power supply
230 VAC

Notes
None.

Available options
None.

Modules with functions of steam injection

EVC70S40X7XXX01
Power supply
230 VAC
Digital outputs (electromechanical relays; res. A @ 250 VAC)
timer 15 A
timer 25 A
Other features
number of keys4
alarm buzzer

Notes
None.

Available options
None.
