Step controllers, timers and pulse counters

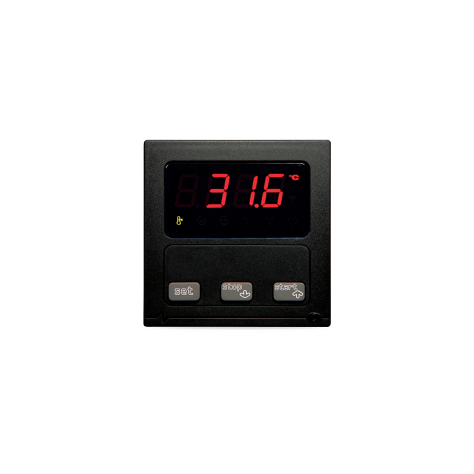

EV7 is a range of temperature controllers, timers and pulse counters.
They are available in compact version, in the size 72 x 72 mm; the user interface consists of a custom display (with decimal point and function icons), three keys and guarantees an IP54 protection rating, for easy cleaning.
Some controllers have the neutral zone operation; all the timers have the count up/count down and the count storing functions.
Installation is by panel, with screw brackets.
Technical sheet
Generate PDF

Advantages & Main Features

Variety of models for different typologies of applications.
Double power supply voltage.
Models with dedicated and multi-input analog input.
Distributor-oriented models.
Removable screw or fixed clamp terminal blocks.
Models with heating/cooling operation.
Models with neutral zone operation.
“Lock keyboard” function.

Technical Features

1 step temperature controllers

EV7401J7EV7401M6
Power supply
24/230 VAC
230 VAC
Analog inputs
room probe (J/K)
room probe (multi-input) (1)
Digital outputs (electromechanical relays; res. A @ 250 VAC)
load8 A8 A
Other features
alarm buzzer
cooling/heating operation

Notes
(1)configurable for PTC/NTC, J/K, 2/3 wires Pt 100 and 0-20/4-20 mA.

Available options
None.

2-step temperature controllers

EV7402J7EV7402M6
Analog inputs
room probe (multi-input) (1)
room probe (J/K)
Digital outputs (electromechanical relays; res. A @ 250 VAC)
load 18 A8 A
load 28 A8 A
Other features
alarm buzzer
cooling/heating operation
neutral zone operation
Power supply
24/230 VAC
230 VAC

Notes
(1)configurable for PTC/NTC, J/K, 2/3 wires Pt 100 and 0-20/4-20 mA.

Available options
None.

1-output timers

EV7701D7
Power supply
230 VAC
Digital inputs (for NA/NC contact)
start
stop
Digital outputs (electromechanical relays; res. A @ 250 VAC)
load5 A
Other features
bicolor display
alarm buzzer
count up/count down0...9,990 units

Notes
None.

Available options
None.

2-output timers

EV7702D7
Power supply
230 VAC
Digital inputs (for NA/NC contact)
start
stop
Digital outputs (electromechanical relays; res. A @ 250 VAC)
load 15 A
load 25 A
Other features
bicolor display
alarm buzzer
count up/count down
working range0...9,990 units

Notes
None.

Available options
None.

1-output pulse counters

EV7001D7
Power supply
230 VAC
Digital inputs (for NA/NC contact)
start
pulse counter
Digital outputs (electromechanical relays; res. A @ 250 VAC)
load5 A
Other features
bicolor display
alarm buzzer
count up/count down
working range0... 9.990 units

Notes
None.

Available options
None.

2-output pulse counters

EV7002D7
Power supply
230 VAC
Digital inputs (for NA/NC contact)
pulse counter 1
pulse counter 2
Digital outputs (electromechanical relays; res. A @ 250 VAC)
load 15 A
load 25 A
Other features
bicolor display
alarm buzzer
count up/count down
working range0... 9.990 units

Notes
None.

Available options
None.
