Pressure transducers for industrial environments

Details
Download
Accessories

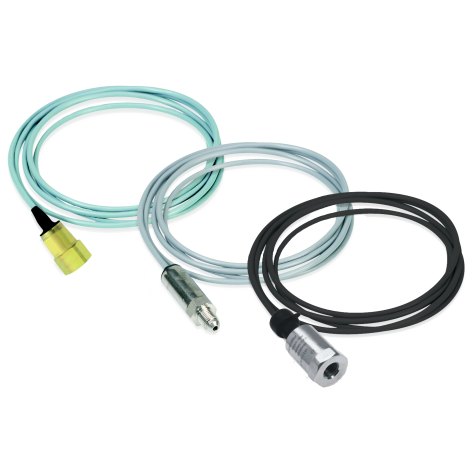

EVPT is a range of pressure transducers for industrial environments.
They supply a 4-20 mA or 0-5 V ratiometric signal (depending upon the model), ensure a wide working range and excellent precision.
The connection is 7/16 inch.

Technical sheet

Nessun download disponibile.

Technical Features

EVPT

Code	Sensor	Working range	Power supply	Output signal	Connector
EVPT530M04	piezoresistive	from 0 to 10 bar	8... 30 VDC	4-20 mA	7/16 inch, male
EVPT530M05	piezoresistive	from 0 to 30 bar	8... 30 VDC	4-20 mA	7/16 inch, male
EVPT130L00	ratiometric	from 0 to 7 bar	5 VDC	0-5 V	7/16 inch, female
EVPT130L01	ratiometric	from 0 to 25 bar	5 VDC	0-5 V	7/16 inch, female
EVPT130L02	ratiometric	from 0 to 60 bar	5 VDC	0-5 V	7/16 inch, female
EVPT530M00	piezoresistive	from 0 to 10 bar	8... 30 VDC	4-20 mA	7/16 inch, female
EVPT530M01	piezoresistive	from 0 to 16 bar	8... 30 VDC	4-20 mA	7/16 inch, female
EVPT530M02	piezoresistive	from 0 to 30 bar	8... 30 VDC	4-20 mA	7/16 inch, female
EVPT530M03	piezoresistive	from 0 to 50 bar	8... 30 VDC	4-20 mA	7/16 inch, female
