Vcolor 338 M & L

Vcolor 338 M & L

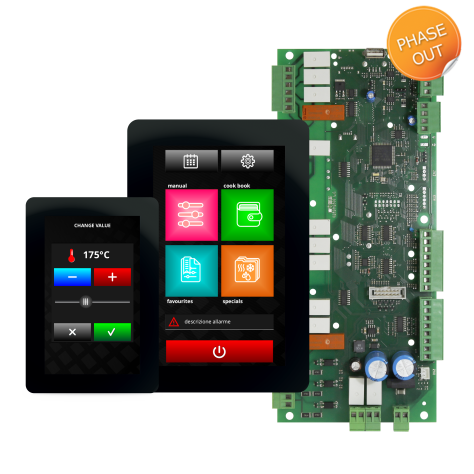

Controller for electric gastronomy and pastry ovens, with 5 or 7-inch colour touch-screen TFT graphic display, in split version
Vcolor 338 is a controller with elegant design for the management of electric gastronomy and pastry ovens (also rotor type).
Available in split version, the user interface consists of a 5-inch (M) or 7-inch (L) capacitive TFT touch-screen graphic display in glass, 65K colours, 800 x 480 pixel resolution and IP65 protection for easy cleaning.
It is able to manage the ventilation both in “on-off” and in modulating mode (in this case it is also necessary to use an external speed regulator), with fan reversal.
The controller has full steam management (generation, injection and extraction), in both automatic and manual mode; steam can be generated either directly or through an external boiler module that also manages water charge and discharge, and the "boiler rinsing" and "boiler washing" functions (the steam generation mode can depend on room temperature).
The machine is also capable of washing management, with both liquid detergents and tabs; using an external burners module it is possible to manage gas ovens.
The user interface installed from behind using threaded studs enables it to be placed flush with the panel thus making it fit perfectly with the design of the unit.
Technical sheet
Generate PDF

Advantages & Main Features

Capacitive TFT touch-screen graphic display, 65K colours, 800 x 480 pixel resolution.
Elegant design, touch-screen, flush mounting and ease of use.
Aesthetic fit with the unit.
Model for different types of electric ovens (including rotary ones).
Management of the ventilation in both “on-off” and modulating mode, with fan reversal.
Full steam management (generation, injection and extraction), both in automatic and manual mode.
Steam generation in direct mode or through the use of an external boiler module.
Washing management with both liquid detergent and tab.
Management of gas ovens using an external burners module.

Technical Features

Controllers with 5-inch graphic display

Vcolor 338M
(5")
BoilerBurners
EVCMC33DJ2EEVCMC33DC2EEVCLE305XXEEVCLE302XXE
Power supply
12 VAC
fed by the controller
Analog inputs
chamber probe (J/K)
chamber probe (2 wires Pt 100)
needle probe (J/K)
needle probe (2 wires Pt 100)
fume probe (J/K)
fume probe (2 wires Pt 100)
boiler probe (J/K)
boiler probe (Pt 100 2 wires)
Digital inputs (for NA/NC contact)
door switch
rack limit switch
fan thermal switch (230 VAC)
thermal switch (230 VAC)
electrical absorption (230 VAC)
boiler water minimum level
boiler water maximum level
boiler motor protection (230 VAC)
presence of a pilot light (230 VAC)
presence of boiler flame (230 VAC)
Analog outputs
0-10 V (fan)
Digital outputs (electromechanical relays; res. A @ 250 VAC)
temperature regulation1 A1 A
direct steam injection1 A1 A
air vent1 A1 A
room light1 A1 A
technical room fan1 A1 A
rack rotation1 A1 A
load 7 (default fan)1 A1 A
load 8 (default not used)1 A1 A
load 9 (default fume reduction)1 A1 A
load 10 ( default washing water valve)1 A1 A
load 11 (liquid detergent injection default)1 A1 A
load 12 (default washing liquid discharge)1 A1 A
load 13 (default rinse aid injection)1 A1 A
boiler temperature regulation  1 A
boiler steam injection  1 A
boiler water drain  1 A
boiler water charge  1 A
boiler burner   1 A
room burner   1 A
Communication ports
MODBUS RS-485
USB
for electronic ignition card for atmospheric burners
Other features
real time clock
alarm buzzer
management of the ventilation both in “on-off” and in modulating mode, with fan reversal
washing management with both liquid detergent and tab
“Weekly programmed switch on” function
“programs” function

Notes
None.

Available options
None.

Controllers with 7-inch graphic display

Vcolor 338L
(7")
BoilerBurners
EVCLC33DJ2EVCLC33DC2EVCLE305XXEEVCLE302XXE
Power supply
12 VAC
fed by the controller
Analog inputs
chamber probe (J/K)
chamber probe (2 wires Pt 100)
needle probe (J/K)
needle probe (2 wires Pt 100)
fume probe (J/K)
fume probe (2 wires Pt 100)
boiler probe (J/K)
boiler probe (Pt 100 2 wires)
Digital inputs (for NA/NC contact)
door switch
rack limit switch
fan thermal switch (230 VAC)
thermal switch (230 VAC)
electrical absorption (230 VAC)
boiler water minimum level
boiler water maximum level
boiler motor protection (230 VAC)
presence of a pilot light (230 VAC)
presence of boiler flame (230 VAC)
Analog outputs
0-10 V (fan)
Digital outputs (electromechanical relays; res. A @ 250 VAC)
temperature regulation1 A1 A
direct steam injection1 A1 A
air vent1 A1 A
room light1 A1 A
technical room fan1 A1 A
rack rotation1 A1 A
load 7 (default fan)1 A1 A
load 8 (default not used)1 A1 A
load 9 (default fume reduction)1 A1 A
load 10 ( default washing water valve)1 A1 A
load 11 (liquid detergent injection default)1 A1 A
load 12 (default washing liquid discharge)1 A1 A
load 13 (default rinse aid injection)1 A1 A
boiler temperature regulation  1 A
boiler steam injection  1 A
boiler water drain  1 A
boiler water charge  1 A
boiler burner   1 A
room burner   1 A
Communication ports
MODBUS RS-485
USB
for electronic ignition card for atmospheric burners
Other features
real time clock
alarm buzzer
management of the ventilation both in “on-off” and in modulating mode, with fan reversal
washing management with both liquid detergent and tab
“Weekly programmed switch on” function
“programs” function

Notes
None.

Available options
None.
