EV3 300 & EV3 700

EV3 300 & EV3 700

Temperature and timing modules for basic ovens

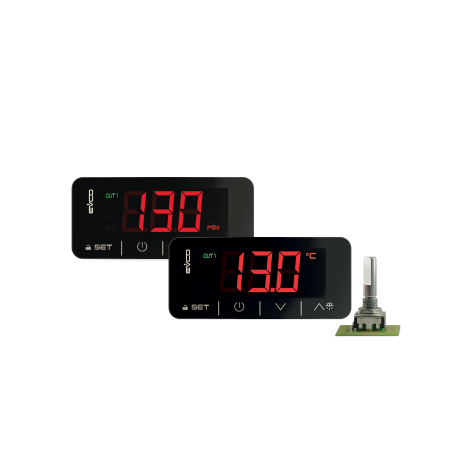

The EV3 300 and EV3 700 range of digital modules for basic ovens used for gastronomy, bread and pastry-making offers an advantageous alternative to the electro-mechanical devices for temperature and timing management (cooking timer and steam injection).
As well as providing more precise regulation that can always be monitored from the display, these modules enable the unit to save energy by on-off or PID temperature control.
The format is standard 74 x 32 mm with reduced depth and an IP65 front with a continuous surface. Models are available with capacitive keys or a push encoder for even faster and more intuitive operations. The push encoder can also be built into models with keys as an optional extra.
Technical sheet
Generate PDF

Advantages & Main Features

Push-encoder
Greatly reduced depth.
On-off or PID control
Stylish design with touch keys, needing just one finger to make settings
Quick programming with EV3KEY flash-drive
IP65 protection.
Format 74 x 32 mm

Technical Features

Temperature modules

EV3301J7EV3311J7
POWER SUPPLY
230 VAC
ANALOGUE INPUTS
Chamber probe (J/K)
DIGITAL INPUTS
Multi-purpose
DIGITAL OUTPUTS (electro-mechanical relays; A res. @ 250 VAC)
Temperature regulation5 A5 A
OTHER STANDARD FEATURES
Alarm buzzer
On-off/PID control
Capacitive touch keys
OPTIONAL FEATURES
Push-encoder control

Notes
None.

Available options
Plug-in screw terminal blocks (fixed-screw as standard).

Timing modules

EV3701D7EV3711D7
POWER SUPPLY
230 VAC
DIGITAL INPUTS
Multi-purpose 1
Multi-purpose 2
DIGITAL OUTPUTS (electro-mechanical relays; A res. @ 250 VAC)
Steam injection/cooking timer5 A5 A
OTHER STANDARD FEATURES
Alarm buzzer
Capacitive touch keys
OPTIONAL FEATURES
Push-encoder control

Notes
None.

Available options
Plug-in screw terminal blocks (fixed-screw as standard).
