EVJ 500

EVJ 500

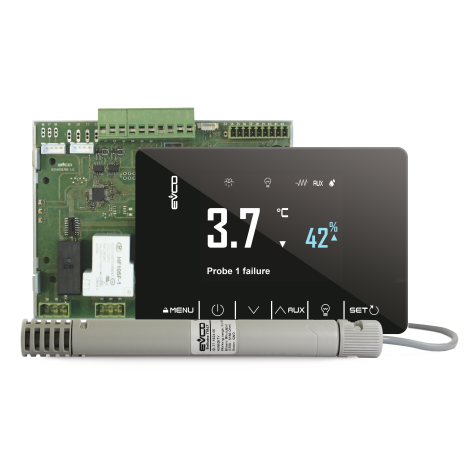

Temperature/humidity controller for cabinets, counters and display units
Controllers in the EVJ 500 range are used for all applications requiring temperature and humidity control, such as pastry and praline displays (EVJ506) and for maturing charcuterie and cheese (EVJ536).
These controllers operate with a proprietary probe and have 6 outputs for managing temperature in heating/cooling mode also with a neutral zone, as well as humidity with humidifying/dehumidifying settings using fans and defrosting cycles.
The models for food processing (EVJ536) are capable of running intuitive programmes to optimise the management of stewing, drying and ageing processes. Regulation options include manual or programmed air exchange cycles, as well as a pause-work function.
Bluetooth BLE connectivity (built-in or enabled by the external EVlink BLE interface) and Wi-Fi connectivity (enabled by the external EVlink Wi-Fi interface) allow interaction with the unit from mobile devices through the EVconnect app for Android and iOS or from the Internet through the EPoCA cloud platform respectively. For more details, please visit the “Remote management and monitoring products/systems” section of our website.
The user interface has a 2.8 inch colour graphic display, capacitive keys and an IP65 front with a continuous surface.
Technical sheet
Generate PDF

Advantages & Main Features

2.8 inch colour graphic display
Stylish design with touch keys, needing just one finger to make settings
Complete ageing cycle management
Interaction with the unit from mobile devices through the EVconnect app or from the Internet through the EPoCA cloud platform
Program management
Air exchange and pause-work management
Electro-mechanical relay for high-power compressors
User interface with IP65 protection

Technical Features

Temperature/humidity controller for cabinets, counters and display units

EVJ506N2VX3EVJ536N2VX3XXV
POWER SUPPLY
12 VAC
ANALOGUE INPUTS
Cabinet probe (PTC/NTC)
Auxiliary probe (PTC/NTC) or humidity transducer
DIGITAL INPUTS
Door switch
CONFIGURABLE INPUTS (ANALOGUE OR DIGITAL)
Auxiliary probe (PTC/NTC) or high pressure switch
DIGITAL OUTPUTS (electro-mechanical relays; A res. @ 250 VAC)
Compressor (configurable)30 A30 A
Defrost (configurable)8 A8 A
Cabinet light (configurable)16 A16 A
Humidifier (configurable)8 A8 A
Evaporator fans (configurable)5 A5 A
Heaters (configurable)8 A8 A
COMMUNICATIONS PORTS
MODBUS TTL
OTHER STANDARD FEATURES
Management via app EVconnect with built-in BLE Bluetooth connectivity
Built-in clock
Alarm buzzer
Complete ageing cycle management
Air exchange and pause-work management
Program management
OPTIONAL FEATURES
Management via app EVconnect with BLE Bluetooth interface (EVlink BLE)
Management via the EPoCA cloud platform using the Wi-Fi (EVlink Wi-Fi) interface

Notes
None.

Available options
Plug-in screw terminal blocks (fixed-screw as standard).
