Controllers for food processing cabinets and rooms

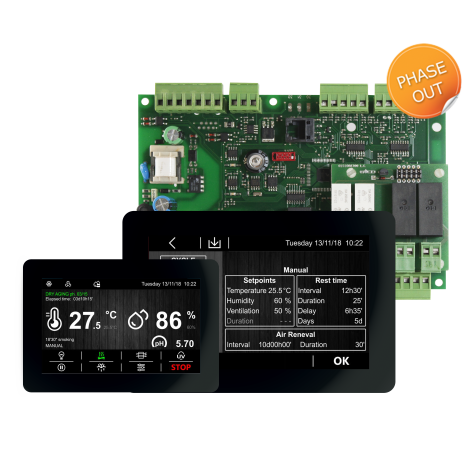

Vcolor 539 is a split controller with a capacitive TFT touch-screen colour graphic display (5” or 7") for recessed or flush panel fitting and total management of food processing cabinets or rooms for different types of products such as meat, charcuterie and cheese.
It has manual conservation cycles and automatic ageing cycles (up to 30 sequential phases) whose duration, temperature, humidity and ventilation can all be fully configured.
It is possible to set automatic air exchange and pause/work cycles, as well as managing optional sterilisation, oxygenation and smoking processes either automatically or manually.
Standard 4-20 mA transducers (such as EVHP523) may be used to manage humidity or read the acidity level of a product; alternatively humidity can be controlled using a dedicated probe T+RH EVTHP520 (RH 5-95% / T -20/80°C).
Upon request, the controllers can be equipped with Wi-Fi connectivity so it can interact remotely with the unit through the EPoCA® cloud platform, with the option of starting/stopping working cycles.
Technical sheet
Generate PDF

Advantages & Main Features

Up to 30 phases per cycle
Interaction with the unit from the Internet through the EPoCA cloud platform
Complete ageing cycle management
Product sterilisation, oxygenation and curing cycles
Dehumidification control
Cold/hot control
5”-7" touch-screen
Flush fit installation
Highly configurable outputs
Dedicated temperature/humidity probe

Technical Features

Controllers for food processing cabinets and rooms

5"7"
EVCMC539N9EEVCLC539N9E
USER INTERFACE ORIENTATION
Horizontal
OPTIONAL FEATURES
Management via the EPoCA cloud platform using the Wi-Fi (EVlink Wi-Fi) interface
POWER SUPPLY
Control module115... 230 VAC115... 230 VAC
User interface (powered by the control module)
User interface (with separate power supply) 12 VAC
ANALOGUE INPUTS
Cabinet probe (PTC/NTC)
Evaporator probe (PTC/NTC)
Condenser probe (PTC/NTC)
EVCO humidity probe (EVHTP500/EVHTP520)
Humidity transducer (4-20 mA)
DIGITAL INPUTS
Door switch
Compressor thermal switch
Low pressure switch
High pressure switch
ANALOGUE OUTPUTS
Evaporator fans (PWM)
DIGITAL OUTPUTS (electro-mechanical relays; A res. @ 250 VAC)
Compressor (configurable)16 A16 A
Cabinet light (configurable)8 A8 A
Humidifier (configurable)8 A8 A
Air exchanger (configurable)8 A8 A
Heaters (configurable)8 A8 A
Alarm (configurable)16 A16 A
Condenser fans (configurable)16 A16 A
Pump down valve (configurable)8 A8 A
Defrost (configurable)8 A8 A
COMMUNICATIONS PORTS
MODBUS RS-485
USB
OTHER STANDARD FEATURES
Alarm buzzer
Clock

Notes
None.

Available options
For other models please contact the EVCO sales network.
