EVJ LCD & EPJ LCD

EVJ LCD & EPJ LCD

Remote user interfaces

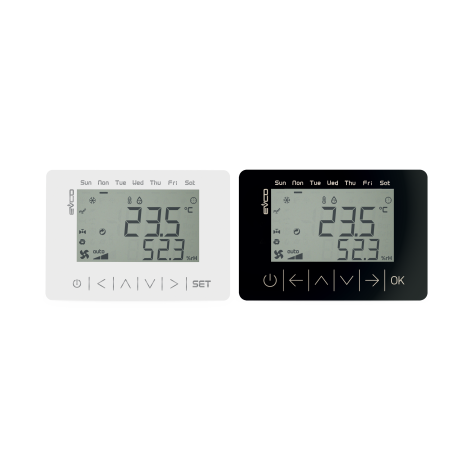

The remote user interfaces EVJ LCD (INTRABUS) and EPJ LCD (CANbus) can be used as remote displays for a wide range of EVCO controllers for HVAC applications and many programmable controllers in the c-pro 3 range.
The versions with an INTRABUS proprietary port provide an effective and economical alternative for point-to-point applications. The versions with a CAN port can be connected to more than one unit in a network of devices.
Depending on the model, a number of different features are installed: 1 or 2 analogue inputs, 2 digital outputs, a built-in temperature and humidity sensor and a Bluetooth BLE communication module, also built in.
With their clean modern lines, LCD display, function icons and 6 capacitive keys, these interfaces blend perfectly with any type of environment also given their panel and wall mounting and the option of their own or controller power feed. The version housed in a built-in box enables it to be powered directly from the mains (115...230 VAC) with no need for transformers.
Technical sheet
Generate PDF

Advantages & Main Features

Stylish design with touch keys, needing just one finger to make settings
Remote connection possible at a distance of up to 1000 metres in a network of devices (EPJ models)
Panel or wall mounting, also with the option of rear housing in a built-in box
Built-in temperature and humidity sensor
Built-in Bluetooth BLE communication module
User interface with IP65 protection

Technical Features

EVJ LCD (INTRABUS)

EVJD900N2EVJD900N2VWEVJD900N2VWIVEVJD920N2VWEVJD920N2VWIVEVJD902N9VPEVJD902N9VPIV
DISPLAY
2-row LCD display
INSTALLATION
Wall-mounted
Wall mounting with rear housing in a built-in box
Panel-mounted
POWER SUPPLY
12 VAC/DC
115... 230 VAC
ANALOGUE INPUTS
Analog input 1 (NTC)
Analog input 2 (NTC)
Analog input 4 (NTC)
DIGITAL OUTPUTS (electro-mechanical relays; A res. @ 250 VAC)
Digital output 1     1 A1 A
Digital output 1     1 A1 A
COMMUNICATIONS PORTS
INTRABUS
BUILT-IN SENSORS
Temperature (analogue input 3) and humidity (analogue input 5)
Bluetooth Low Energy
OTHER STANDARD FEATURES
Alarm buzzer

Notes
None.

Available options
None.
EVJD922N9PWEVJD922N9VPIV
DISPLAY
2-row LCD display
INSTALLATION
Wall-mounted
Wall mounting with rear housing in a built-in box
Panel-mounted
POWER SUPPLY
12 VAC/DC
115... 230 VAC
ANALOGUE INPUTS
Analog input 1 (NTC)
Analog input 2 (NTC)
Analog input 4 (NTC)
DIGITAL OUTPUTS (electro-mechanical relays; A res. @ 250 VAC)
Digital output 11 A1 A
Digital output 11 A1 A
COMMUNICATIONS PORTS
INTRABUS
BUILT-IN SENSORS
Temperature (analogue input 3) and humidity (analogue input 5)
Bluetooth Low Energy
OTHER STANDARD FEATURES
Alarm buzzer

Notes
None.

Available options
None.

EPJ LCD (CAN)

EPJD900N3VWEPJD920N3VWEPJD902N9VPEPJD922N9VP
DISPLAY
2-row LCD display
INSTALLATION
Wall-mounted
Wall mounting with rear housing in a built-in box
POWER SUPPLY
12 VAC/DC
115... 230 VAC
ANALOGUE INPUTS
Analog input 1 (NTC)
Analog input 2 (NTC)
Analog input 4 (NTC)
DIGITAL OUTPUTS (electro-mechanical relays; A res. @ 250 VAC)
Digital output 1  1 A1 A
Digital output 1  1 A1 A
COMMUNICATIONS PORTS
CAN
USB
BUILT-IN SENSORS
Temperature (analogue input 3) and humidity (analogue input 5)
OTHER STANDARD FEATURES
Alarm buzzer

Notes
None.

Available options
None.
