Temperature probes for industrial environments

Details
Download
Accessories

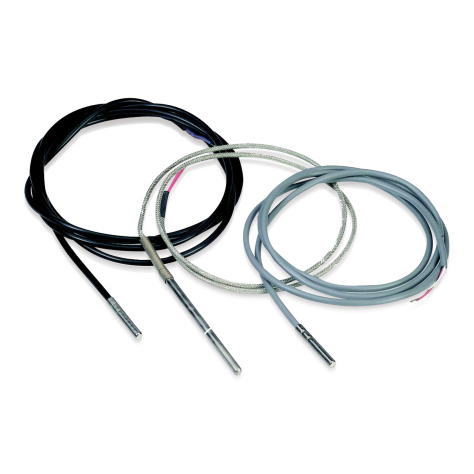

EVTP is a range of temperature probes for industrial environments.
They use the most common temperature sensors (PTC, NTC, Pt 100, J and K thermocouples), are available in different executions, ensure a wide working range and good precision.
Some probes guarantee an IP68 protection rating; others ensure a double insulation.

Technical sheet

Technical Features

EVTP

Code	Sensor	Type of cable	Cable length	Bulb size	Working range	Other
EVTPP815P200	PTC	2 wires PVC	1.5 m	6 x 30 mm resinated	from -20 to 80 °C	-
EVTPP830P200	PTC	2 wires PVC	3 m	6 x 30 mm resinated	from -20 to 80 °C	-
EVTPP815S200	PTC	2 wires silicone	1.5 m	6 x 40 mm resinated	from -50 to 120 °C	-
EVTPP830S200	PTC	2 wires silicone	3 m	6 x 40 mm resinated	from -50 to 120 °C	-
EVTPP615F200	PTC	2 wires thermoplastic	1.5 m	6 x 15 mm overmoulded	from -50 to 120 °C	-
EVTPPW15F201	PTC	2 wires thermoplastic	1.5 m	5 x 20 mm overmoulded	from -50 to 120 °C	IP68 protection rating
EVTPPW30F200	PTC	2 wires thermoplastic	3 m	5 x 20 mm overmoulded	from -50 to 120 °C	IP68 protection rating
EVTPN815P200	NTC	2 wires PVC	1.5 m	6 x 23 mm resinated	from -20 to 80 °C	-
EVTPN815S200	NTC	2 wires silicone	1.5 m	6 x 40 mm resinated	from -40 to 110 °C	-
EVTPN815S201	NTC	2 wires silicone	1.5 m	6 x 40 mm resinated	from -40 to 110 °C	-
EVTPN830S200	NTC	2 wires silicone	3 m	6 x 40 mm resinated	from -40 to 110 °C	-
EVTPNW15F200	NTC	2 wires thermoplastic	1.5 m	5 x 20 mm overmoulded	from -40 to 110 °C	IP68 protection rating
EVTPN615F200	NTC	2 wires thermoplastic	1.5 m	6 x 15 mm overmoulded	from -40 to 110 °C	-
EVTPN630F200	NTC	2 wires thermoplastic	3 m	6 x 15 mm overmoulded	from -40 to 110 °C	-
EVTPN715F201	NTC	2 wires thermoplastic	1.5 m	bracelet	from -40 to 110 °C	-
EVTPNA15P200	NTC	2 wires PVC	1.5 m	7 x 24.5 mm resinated	from -20 to 80 °C	double isolation
EVTPNA30P200	NTC	2 wires PVC	3 m	7 x 24.5 mm resinated	from -20 to 80 °C	double isolation
EVTPJ815V200	J	2 wires vetrotex	1.5 m	6 x 100 mm	from -40 to 350 °C	-
EVTPJ830V200	J	2 wires vetrotex	3 m	6 x 100 mm	from -40 to 350 °C	-
EVTPK815V200	K	2 wires vetrotex	1.5 m	6 x 100 mm	from -40 to 350 °C	-
EVTPK830V200	K	2 wires vetrotex	3 m	6 x 100 mm	from -40 to 350 °C	-
EVTPC815P300	Pt 100	3 wires PVC	1.5 m	6 x 100 mm	from -20 to 80 °C	-
EVTPC815S200	Pt 100	2 wires silicone	1.5 m	6 x 100 mm	da 0 a 200 °C	-
EVTPC830S200	Pt 100	2 wires silicone	3 m	6 x 100 mm	da 0 a 200 °C	-
EVTPC830S300	Pt 100	3 wires silicone	3 m	6 x 100 mm	da 0 a 200 °C	-
EVTPC815V200	Pt 100	2 wires vetrotex	1.5 m	6 x 100 mm	da -50 a 350 °C	-
EVTPC830V200	Pt 100	2 wires vetrotex	3 m	6 x 100 mm	da -50 a 350 °C	-
EVTPC815V300	Pt 100	3 wires vetrotex	1.5 m	6 x 100 mm	da -50 a 350 °C	-
EVTPC830V300	Pt 100	3 wires vetrotex	3 m	6 x 100 mm	da -50 a 350 °C	-
EVTPM615F200	Pt 1000	2 wires thermoplastic	1.5 m	5 x 20 costampato	da -50 a 110 °C	-
EVTPM630F200	Pt 1000	2 wires thermoplastic	3 m	5 x 20 costampato	da -50 a 110 °C	-
