Vcolor 618

Vcolor 618

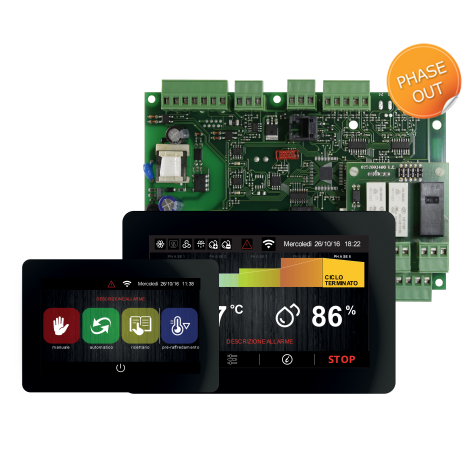

Controller for retarding-proofing cabinets and rooms, with a 5 or 7-inch colour TFT touch-screen graphic display, in split version
Vcolor 618 is a controller with elegant design for the management of retarding-proofing cabinets and rooms.
Available in split version, the user interface consists of a 5-inch (M) or 7-inch (L) capacitive TFT touch-screen graphic display in glass, 65K colours, 800 x 480 pixel resolution and IP65 protection for easy cleaning.
The user interface can be installed recessed from the front or flush with the panel, thus making it fit perfectly with the design of the unit.
It is able to manage automatic retarding-proofing cycles (stopping, storing, awakening, proofing and slowing phases) and manual storing and proofing cycles (with independent temperature, humidity and ventilation intensity management for each phase). It also has the “programs” function and a communication port for common USB flash drives.
Users can interact remotely with their equipment, including starting/stopping working cycles, using the EPoCA® cloud platform with Wi-Fi or Ethernet connectivity (which also enables alternative or parallel control through MODBUS TCP). For more details, compare all the connectivity options in the Technical Data table and consult the sections of our website: Products/ Management and Monitoring Systems and Products/ Connectivity Devices.
Technical sheet
Generate PDF

Advantages & Main Features

Capacitive TFT touch-screen graphic display, 65K colours, 800 x 480 pixel resolution.
Elegant design, touch-screen, flush mounting and ease of use.
USB communication port for common USB flash drive
Interaction with the unit from the Internet through the EPoCA cloud platform
Management of automatic and manual retarding-proofing cycles.
Independent ventilation management for each phase.
Dehumidification management through dehumidifier or compressor activation.
Pump down valve management, timed or through low pressure switch.
IP65 protection.

Technical Features

Controllers with 5 or 7-inch graphic display

Vcolor 618MVcolor 618L
Power supply
control module115... 230115... 230
user interface (powered by the control module)
user interface (with separate power supply) 12 VAC
Analog inputs
cabinet probe (PTC/NTC)
evaporator probe (PTC/NTC)
condenser probe (PTC/NTC)
humidity probe (4-20 mA)
Digital inputs (for NA/NC contact)
door switch
compressor thermal switch
low pressure switch
high pressure switch
Analog outputs
PWM (evaporator fan)
Digital outputs (electromechanical relays; res. A @ 250 VAC)
steam generator
room light
load 4 (default dehumidifier) (1)
load 8 (default pump down valve) (2)
Communication ports
RS-485 MODBUS RTU (built-in)
Wi-Fi EPoCA/MODBUS TCP (optional through the EVlinking Wi-Fi module powered by controller)
Ethernet EPoCA/MODBUS TCP (optional through the controller/gateway EV3 200 Web)
Other features
real time clock
alarm buzzer
management of automatic retarding-proofing cycles, and of manual storing and proofing cycles
ventilation intensity management
“HACCP” function
“programs” function
(1)configurable for dehumidifier or condenser fan
(2)configurable for pump down valve or evaporator fan.
Available options
For other models please contact the EVCO sales network.
