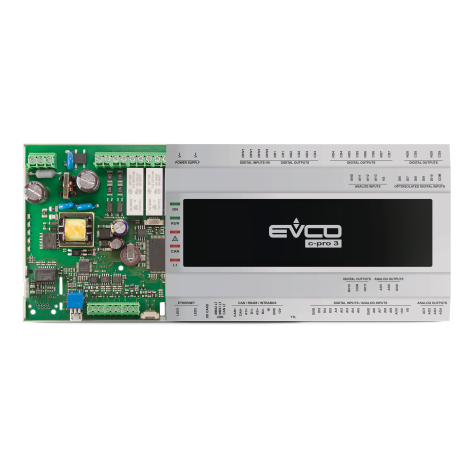

c-pro 3 giga

c-pro 3 giga

Programmable controllers
The range of c-pro 3-giga programmable controllers has up to 28 I/O, as well as a wide range of communications ports and protocols, making possible advanced management of HVAC/R applications, also according to their use in local or remote control systems.
The application software can be set up quickly and intuitively thanks to the UNI-PRO 3 integrated development environment. All models have both BACnet MSTP and a data-logging function and the NODE versions are also fitted with an Ethernet port for the use of MODBUS TCP, BACnet IP and Web Server.
In the 10 DIN module blind version, the controller is compatible with all the displays of the programmable c-pro 3 range, available in a wide choice of formats, technologies and installation methods.
Technical sheet
Generate PDF

Advantages & Main Features

Variety of communication ports (RS-485, CAN, USB and Ethernet) and supported communication protocols, to promote system integration.
BACnet® communications protocol.
Web Server function.
Data-logging function.
The application software can be designed in an intuitive way thanks to the UNI-PRO 3 integrated development environment.
Flexibility, modularity and expandability.
28 inputs and outputs.
Standard size 10 DIN modules.

Technical Features

Programmable controllers

EPG9BEPG9BHX
FORMAT
10 DIN modules, open frame
10 DIN modules with a housing
INSTALLATION
On a DIN rail
CONNECTIONS
Fixed screw terminal blocks
Plug-in screw terminal blocks
POWER SUPPLY
115... 230 VAC
CONFIGURABLE INPUTS (ANALOGUE OR DIGITAL)
Analogue input (PTC/NTC/Pt 1000) or digital input (dry contact)5555
Analogue input (PTC/NTC/Pt 1000/0-5 V/0-10 V/0-20 mA/4-20 mA) or digital input (dry contact)5555
DIGITAL INPUTS
Dry contact and for pulse trains up to 2 KHz3333
High voltage2222
ANALOGUE OUTPUTS
0-10 V/PWM4444
DIGITAL OUTPUTS (electro-mechanical relays; A res. @ 250 VAC)
2 A SPST2222
3 A SPST5555
3 A SPDT1111
8 A SPST1111
COMMUNICATIONS PORTS
MODBUS TTL1111
INTRABUS1111
MODBUS RS-485 slave1111
RS-485 (MODBUS master/slave, BACnet MS/TP)1111
CAN1111
USB1111
Ethernet (MODBUS TCP, Web Server, BACnet IP) (1)  11
OTHER STANDARD FEATURES
Built-in clock

Notes
(1)The BACnet communications protocol can be used only in alternative to the Web Server function.

Available options
None.
