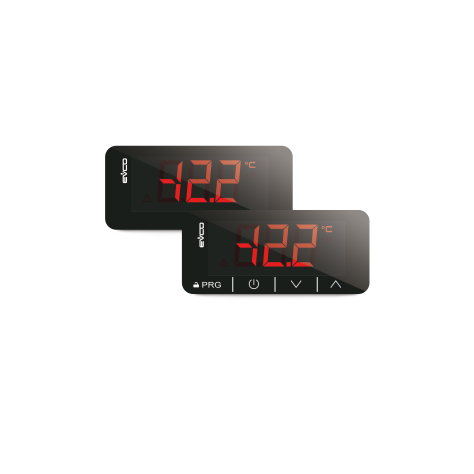

EV3 Measure
Digital measuring devices
EV3 Measue is a series of digital measuring devices. The series includes thermometers which detect values from PTC/NTC temperature probes (EV3T10) and universal measuring devices which detect various types of values depending on the input in use (PTC/NTC/J/K/Pt 100/Pt 1000/Ni 120/0-20 mA/4-20 mA/0-10 V/2-10 V). The latter can be used for measuring pressure, humidity and many other quantities.
The series features a compact 74 x 32 mm format with IP65 frontal protection. single-line 3-digit LED display, decimal point, sign and function icons. The devices can manage 2 types of alarms (high and low) or 2 levels for the same alarm.
The thermometers have a reduced depth and can be configured via dedicated EV3KEY flash drive, while the universal measuring devices have on top 4 capacitive touch keys to locally set parameters and a TTL port for connection with remote monitoring and configuration systems. An optional flash drive, EVJKEY, is also available for a quick download and upload of the settings in the universal measuring devices. .
The series features a compact 74 x 32 mm format with IP65 frontal protection. single-line 3-digit LED display, decimal point, sign and function icons. The devices can manage 2 types of alarms (high and low) or 2 levels for the same alarm.
The thermometers have a reduced depth and can be configured via dedicated EV3KEY flash drive, while the universal measuring devices have on top 4 capacitive touch keys to locally set parameters and a TTL port for connection with remote monitoring and configuration systems. An optional flash drive, EVJKEY, is also available for a quick download and upload of the settings in the universal measuring devices. .
Technical sheet
Instructions sheet EV3100M5
Advantages & Main Features
