EVJ 700 Thawing

EVJ 700 Thawing is a controller for thawing cabinets. It has five relays which can be configured to meet users’ needs and are also available in the sealed version, so can be used with refrigerant gases with reduced environmental impact (such as R290).
The thawing cycles can be time- or temperature-controlled (using a needle probe) and automatically go to the holding phase. Each of the two operating modes has four pre-set programmes which are accessed from the display, allowing users to customise thawing and preservation setpoints for the loads quickly and easily, preventing the development of bacteria and ensuring only the highest quality and safety standards.
The display can be configured to show the current values or the setpoints set for cabinet temperature, needle probe temperature (for temperature-controlled cycles) and countdown (for time-controlled cycles). A status bar indicates if a thawing cycle is running and a buzzer sounds to signal the end of the cycle. Alarms are also signalled with visual messages and sounds.

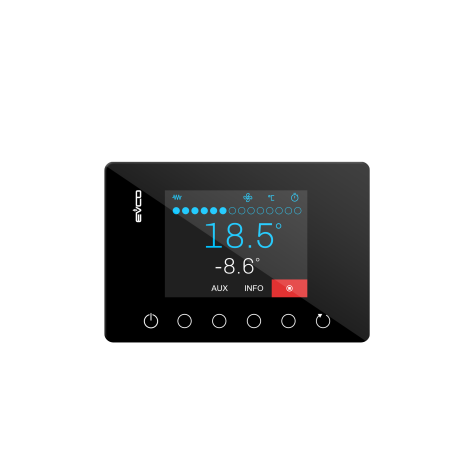

The controller has a built-in user interface with a 2.8 inch colour graphic display, 6 capacitive keys and an IP65 front with a continuous surface. It can be fitted to the panel in the conventional way, built into the front, or concealed under the panel (if made of glass or methacrylate), ensuring high cleaning and hygiene standards.
Users can interact remotely with their equipment using the EPoCA® cloud platform with Wi-Fi or Ethernet connectivity (which also enables alternative or parallel control through MODBUS TCP). Onsite, they can interact from a mobile device with the EVconnect® app which uses Bluetooth Low Energy connectivity. For more details, compare all the connectivity options in the Technical Data table and consult the sections of our website: Products/ Management and Monitoring Systems and Products/ Connectivity Devices.
