Remote user interfaces

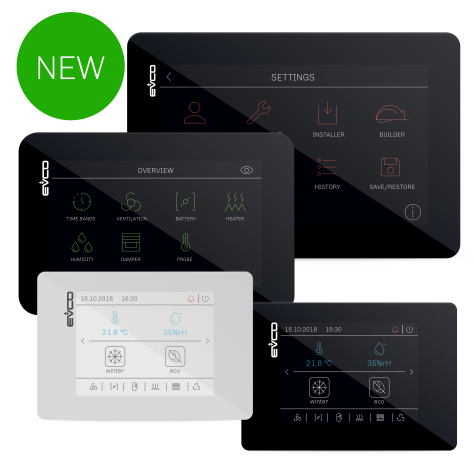

EPcolor is a range of user interfaces which can programmed in the UNI-PRO 3 environment. They can be used in a wide range of applications in a vast number of different sectors.
With a full capacitive TFT touch-screen colour graphic display in glass, resolution up to 800x480 pixels and IP65 frontal protection, the user interfaces are available in 3.5 inches (S), 5 inches (M) or 7 inches (L) format for panel or wall installation. The 3,5" wall-fit models are also available in white colour and some of them incorporate a temperature or a temperature and humidity sensor, whose readings can be transmitted via BUS. Besides a CAN port and one or two RS-485 ports, the user interfaces have a USB port for programming and other configuration activities.
The development environment for UNI-PRO 3 programmable controllers makes it possible to intuitively personalise both the application software and the user interface. Highly evolved graphics and user navigation options can be set up using a wide range of predefined libraries and widgets. Moreover, the ability to use fonts, load bitmaps and text translation files simplifies the human-machine interface personalisation process.
EPcolor can operate in browser mode, i.e. as a controller display, or as a controller with an on-board regulation programme and data-logging and MODBUS master/slave communications possibilities.
Technical sheet
Generate PDF

Technical Features

Remote user interfaces

EPcolor SEPcolor MEPcolor L
EPJC940U4EPJC940U4EXSBEPJC940U4VWCWEPJC940U4VWSWEPJC950U4VWCWEPJC950U4VWSWEPJC960U4VWCWEPJC960U4VWSWEPCM90X4EPCM91X4EPCM94X4VEPCL90X4EPCL91X4EPCL94X4V
DISPLAY
3.5-inch capacitive TFT touch-screen graphic display in glass
5-inch capacitive TFT touch-screen graphic display in glass
7-inch capacitive TFT touch-screen graphic display in glass
INSTALLATION
Panel mounting, built into the front
Flush-fit with the panel
Wall-mounted
CONNECTIONS
Fixed screw terminal blocks
Plug-in screw terminal blocks
POWER SUPPLY
24 VAC/12... 30 VDC
COMMUNICATIONS PORTS
RS-485 MODBUS master        111111
MODBUS RS-485 slave 1 1 1 1111111
RS-485 MODBUS master/slave11111111
CAN1 1 1 1 111111
USB11111111111111
OTHER STANDARD FEATURES
Built-in temperature sensors
Built-in temperature and humidity sensors
Clock
Alarm buzzer

Notes
None.

Available options
None.
