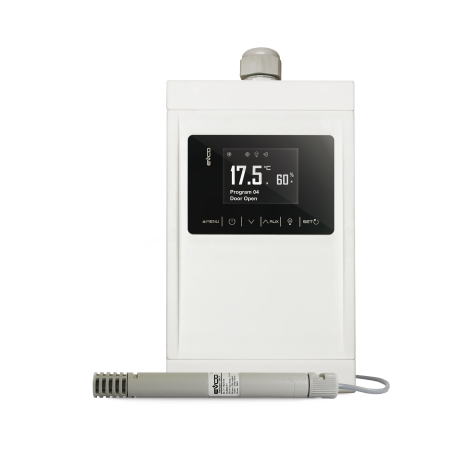

EVBOX Light J500

EVBOX Light J500

Frontal electrical panels for temperature/humidity and food processing rooms
EVBOX Light J500 is a range of frontal electrical panels operating with a proprietary probe. They provide control solutions for temperature/humidity and food processing rooms, with both heating and cooling modes.
In the models for food processing rooms, management of the dripping, drying and ageing processes is optimised by the use of intuitive programs that can be configured for timing, temperature and humidity. Regulation options include manual or programmed air exchange cycles, as well as a pause-work function.
Bluetooth BLE connectivity (built-in or enabled by the external EVlink BLE interface) and Wi-Fi connectivity (enabled by the external EVlink Wi-Fi interface) allow interaction with the unit from mobile devices through the EVconnect app for Android and iOS or from the Internet through the EPoCA cloud platform respectively. For more details, please visit the “Remote management and monitoring products/systems” section of our website.
The user interface has a 2.8 inch colour graphic display and capacitive keys. All parts of the electrical panel are designed to guarantee IP65 protection.
Technical sheet
Generate PDF

Advantages & Main Features

Ready-to-install solution
Electro-mechanical relay for high-power compressors
Interaction with the unit from mobile devices through the EVconnect app or from the Internet through the EPoCA cloud platform
Proprietary temperature/humidity probe
2.8 inch colour graphic display
Electrical panel with full IP65

Technical Features

Frontal electrical panels for temperature/humidity and food processing rooms

EVLJ536N7V3RXX1Control solution for seasoning rooms
POWER SUPPLY
230 VAC
ANALOGUE INPUTS
Cabinet probe (PTC/NTC)
Auxiliary probe (PTC/NTC) or humidity transducer
DIGITAL INPUTS
Door switch
CONFIGURABLE INPUTS (ANALOGUE OR DIGITAL)
Auxiliary probe (PTC/NTC) or high pressure switch
DIGITAL OUTPUTS (electro-mechanical relays; A res. @ 250 VAC)
Compressor (configurable)30 A30 A
Defrost (configurable)8 A8 A
Cabinet light (configurable)16 A16 A
Humidifier (configurable)8 A8 A
Evaporator fans (configurable)5 A5 A
Heaters (configurable)8 A8 A
COMMUNICATIONS PORTS
MODBUS TTL
OTHER STANDARD FEATURES
Management via app EVconnect with built-in BLE Bluetooth connectivity
Built-in clock
Alarm buzzer
Complete ageing cycle management
Air exchange and pause-work management
Program management
OPTIONAL FEATURES
Management via app EVconnect with BLE Bluetooth interface (EVlink BLE)
Management via the EPoCA cloud platform using the Wi-Fi (EVlink Wi-Fi) interface

Notes
None.

Available options
None.
