EV Mix
Controllers for industrial mixers
The digital controllers with inverter technology in the EV Mix series are a modern alternative to electro-mechanical devices for managing industrial spiral mixers with 750, 1500 or 2200 W motors and 2300 W motors with a high start-up current. The speed of the motors can be varied, producing different types of dough and making the mixer more energy efficient.

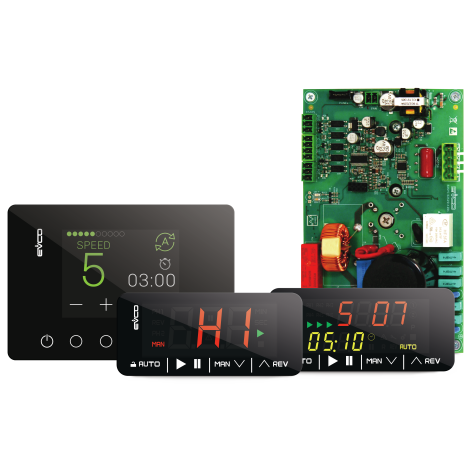

The controllers are available with an inverter open board and a heat sink. Users can choose from a 2.8” interface with an LCD colour graphic display and 74 x 32 mm models with a single- or double-line LED display and 4 capacitive touch keys. Both options have IP65 front protection.
The controllers manage manual (unlimited time) and automatic cycles whose duration and speed can be set for each phase. In the LED models with a single-line display, it is possible to set 3 rotation speeds (high, medium and low) and cycles with up to 2 phases, while in the LED models with a double-line display and the LCD model, there are 10 possible speeds and 10 phases for the automatic cycle. The duration setting of each phase ranges from 1 to 99 minutes.
Regulation options include a pause-work function, a “reverse” function to remove the dough from the spiral, change of speed during operation, and management and display of motor alarms. Programmes can also be stored in the models with the LCD interface.
The controllers are available with an inverter open board and a heat sink. Users can choose from a 2.8” interface with an LCD colour graphic display and 74 x 32 mm models with a single- or double-line LED display and 4 capacitive touch keys. Both options have IP65 front protection.
The controllers manage manual (unlimited time) and automatic cycles whose duration and speed can be set for each phase. In the LED models with a single-line display, it is possible to set 3 rotation speeds (high, medium and low) and cycles with up to 2 phases, while in the LED models with a double-line display and the LCD model, there are 10 possible speeds and 10 phases for the automatic cycle. The duration setting of each phase ranges from 1 to 99 minutes.
Regulation options include a pause-work function, a “reverse” function to remove the dough from the spiral, change of speed during operation, and management and display of motor alarms. Programmes can also be stored in the models with the LCD interface.
