Vcolor 379
Controller for rotating pizza ovens
The Vcolor 379 controller manages rotating pizza ovens powered by wood, gas or electricity. When connected to an EVCO inverter via its RS-485 serial port, the controller drives the three-phase motor of the rotary plate. Users can choose the direction of rotation (even pausing the plate between rotations) and adjust its speed. It can also control temperature through one or two analogue inputs, with independent regulation of the power or temperature of the top and floor heaters, and it has a number of functions like rapid heating and economy mode. In ovens where it is not possible to control the temperature, the inputs are used to measure and display its current values.
The controller can save up to 99 recipes. Recipes can be compiled in an ODS file (complete with pictures in BMP or GIF format) and uploaded to the controller using a USB flash drive, thanks to the innovative programmable platform which allows users to customise their recipes and add new languages. Recipes can also be altered, overwritten and saved directly from the display and two different recipes can be switched on and off for every day of the week.

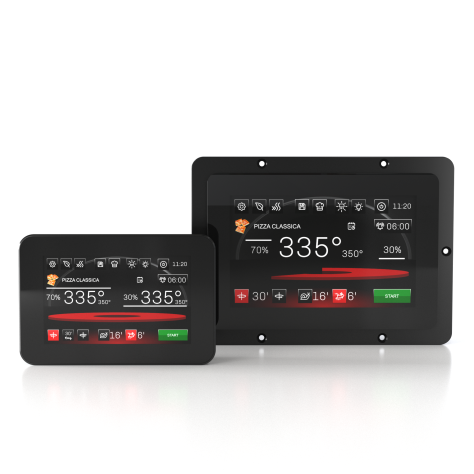

The Vcolor 379 controller consists of a control module with an open frame board, an inverter also with an open frame board (both installed on the oven) and a remote user interface with a 5-inch (M) or 7-inch (L) capacitive TFT touch-screen graphic display in glass and IP65 protection for easy cleaning. The user interface can be semi-recessed into the front or installed flush with the panel, fitting in perfectly with the design of the oven.
Users can interact remotely with their equipment, including starting/stopping working cycles, using the EPoCA® cloud platform with Wi-Fi or Ethernet connectivity (which also enables alternative or parallel control through MODBUS TCP). For more details, compare all the connectivity options in the Technical Data table and consult our website.
The controller can save up to 99 recipes. Recipes can be compiled in an ODS file (complete with pictures in BMP or GIF format) and uploaded to the controller using a USB flash drive, thanks to the innovative programmable platform which allows users to customise their recipes and add new languages. Recipes can also be altered, overwritten and saved directly from the display and two different recipes can be switched on and off for every day of the week.
The Vcolor 379 controller consists of a control module with an open frame board, an inverter also with an open frame board (both installed on the oven) and a remote user interface with a 5-inch (M) or 7-inch (L) capacitive TFT touch-screen graphic display in glass and IP65 protection for easy cleaning. The user interface can be semi-recessed into the front or installed flush with the panel, fitting in perfectly with the design of the oven.
Users can interact remotely with their equipment, including starting/stopping working cycles, using the EPoCA® cloud platform with Wi-Fi or Ethernet connectivity (which also enables alternative or parallel control through MODBUS TCP). For more details, compare all the connectivity options in the Technical Data table and consult our website.
Technical sheet
Advantages & Main Features
