Sensor system to control the differential pressure of fans and filters

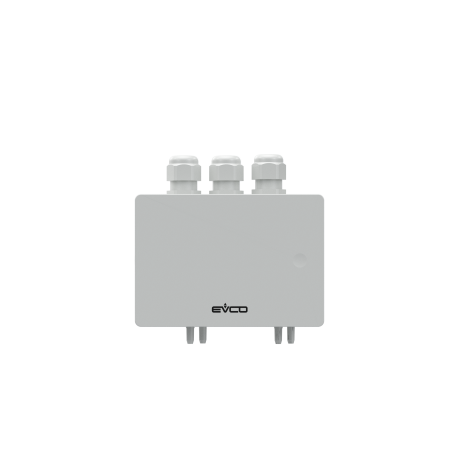

EV Sensor is a sensor system which monitors and controls the differential pressure of fans and filters in air handling systems and is suitable for both indoor and outdoor installation. Equipped with two differential pressure transducers with full scale values of 600, 1600, 2500 and 10000 Pa, it measures fan pressure/flow in the two air ducts (inlet and extraction) or fan pressure/flow and the dynamic loss of load performance of the filter in a single duct.
The two inputs (which can be configured for either an analogue or digital signal) and a universal input allow two additional probes, for example, to measure the temperature in the inlet and extraction ducts, and a humidity probe to be connected. To make connection even easier, a 0-10 V analogue output is available to modulate fan speed and a tachometric input for feedback, which is used to detect any faults in the fan.
EV Sensor can be integrated with Master control devices via the RS-485 port with the MODBUS RTU protocol, allowing configuration using MODBUS registers (already implemented in most of EVCO controllers for air handling systems). The filter setpoint can be set in accordance with fan flow, optimising scheduled maintenance.
Technical sheet
Generate PDF

Technical Features

Control via RS-485 port

EVSP0P0BS4EVSP1P1BS4EVSP2P2BS4EVSP0P1BS4EVSP0P2BS4EVSP0P5BS4EVSP5P5BS4
FORMAT
118 x 80 x 40 mm
POWER SUPPLY
12... 24 VDC
TRASDUTTORI DI PRESSIONE
600 Pa2  111
1600 Pa 2 1
2500 Pa  2 1
10000 Pa     12
CONFIGURABLE INPUTS (ANALOGUE OR DIGITAL)
Analogue input (NTC/PTC/Pt 1000) or digital input (multi-purpose)2222222
Ingresso analogico (universale: 0-10 V, 4... 20 mA, PTC/NTC/Pt 1000, EVHTP520) o ingresso digitale (multifunzione)1111111
DIGITAL INPUTS
ON-OFF or pulse train (0... 100 Hz)1111111
ANALOGUE OUTPUTS
0-10 V1111111
COMMUNICATIONS PORTS
MODBUS RS-485 slave1111111

Notes
None.

Available options
None.

Control via 0-10 V output

EVSP0P0BA0EVSP1P1BA0EVSP2P2BA0EVSP0P1BA0EVSP0P2BA0EVSP0BA0EVSP1BA0
FORMAT
118 x 80 x 40 mm
POWER SUPPLY
12... 24 VDC
TRASDUTTORI DI PRESSIONE
600 Pa2  111
1600 Pa 2 1  1
2500 Pa  2 1
ANALOGUE OUTPUTS
0-10 V2222211

Notes
None.

Available options
None.
EVSP2BA0
FORMAT
118 x 80 x 40 mm
POWER SUPPLY
12... 24 VDC
TRASDUTTORI DI PRESSIONE
600 Pa
1600 Pa
2500 Pa1
ANALOGUE OUTPUTS
0-10 V1

Notes
None.

Available options
None.
