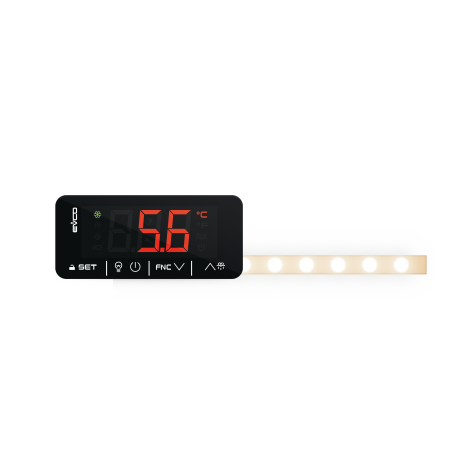

EV3 200 Led

EV3 200 Led

Fiche technique
Générer PDF

Principaux avantages et caractéristiques

Interaction avec l'unité à partir d'appareils mobiles via l'application EVconnect ou d'Internet via la plate-forme cloud EPoCA
Conformes à la norme EN 60079-15 pour l'emploi dans des installations qui utilisent des hydrocarbures
fonctionnement pour le froid/le chaud
Gestion adaptative du dégivrage et stratégies pour l'économie d'énergie
Format standard 74 x 32 mm
4 touches de type capacitif
Protection frontale IP65

Caractéristiques techniques

EV3BA3N7EV32A3N7
CONNEXIONS
Borniers à vis extractibles
ALIMENTATION
230 VAC
ENTRÉES ANALOGIQUES
Sonde enceinte (PTC/NTC)
Sonde auxiliaire (PTC/NTC)
ENTRÉES NUMÉRIQUES
Micro-interrupteur porte/multifonction
SORTIES NUMÉRIQUES (relais électromécaniques ; A rés. à 250 VAC)
Compresseur16 A16 A
Dégivrage (configurable)8 A8 A
Ventilateurs évaporateur (configurable)5 A5 A
ALTRE USCITE
12 VDC for control of up to 3 W/0,25 A LED lamp if power is supplied by the controller; control of up to 24 W/1 A lamp if power is supplied externally
PORT DE COMMUNICATION
TTL MODBUS
CONNECTIVITY
RS-485 MODBUS RTU (optional through the EVlinking RS-485 module)
Bluetooth Low Energy for EVconnect app (optional through the EVlinking BLE module)
Wi-Fi EPoCA/MODBUS TCP (optional through the EVlinking Wi-Fi module with separate 12 Vac/15 Vdc power supply)
Ethernet EPoCA/MODBUS TCP (optional through the EVCO gateways EV3 Web or EVD Web)
AUTRES CARACTÉRISTIQUES D'ORIGINE
Buzzer d'alarme
Fonctionnement avec EVJKEY
Fonction refroidissement rapide
Fonction économie d'énergie
Gestion adaptative du dégivrage
Fonctionnement pour froid/pour chaud

Notes
Aucune.

Options disponibles
Avec relais "full-sealed" pour les installations qui utilisent des hydrocarbures.
