Controllers for single and dual-circuit chillers

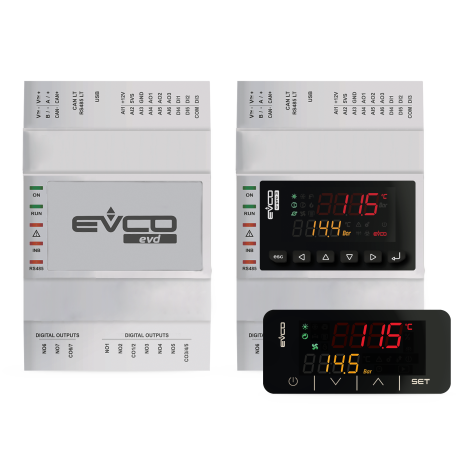

EV3 CHIL and EVD CHIL are controllers for running single-circuit air-water and water-water chillers with up to 2 compressors.
EV3 CHIL is available in the standard 74x32 mm format with built-in user interface consisting of a double custom display, with decimal point and function icons, and four touch keys. It guarantees IP65 protection for easy cleaning.
EVD CHIL is available in standard 4-module DIN format, in a blind version that can be connected to a remote user interface (EV3K01) if required.
The functions of the second circuit can be managed by the controller or by an I/O expansion (EVD EXP).
These controllers are capable of running compressors and fans of both the on-off and modulating types.
EV3 CHIL is available with a 12 VAC power supply, while EVD CHIL can be supplied with a 115... 230 VAC power supply.
EV3 CHIL is designed to be installed on a panel with snap-in brackets, while EVD CHIL is fitted to a DIN rail in a control panel.
Technical sheet
Generate PDF

Advantages & Main Features

User-friendly solution
Management of on-off and variable capacity compressors.
Management of “on-off” and modulating fans.
OEM-oriented.
Available with built-in user interface or in blind version.
Standard 74 x 32 mm or 4 DIN modules format.
Models with IP65 protection.
Models with 6-compressor management.

Technical Features

Controllers for single and dual-circuit chillers

EV3 CHILEVD CHILEVD EXPEV3K01
EV3904LM2EV3906LM2GFEVD904BM9EVD904BM9MFEVD904LM9MFEVD094EM9EV3K01XOCT
Version
blind
built-in LED (4+4 digits custom display)
Connections
Micro-Fit connectors
Edge connectors
removable screw terminal blocks
Power supply
12 VAC not isolated
12 VAC/DC not isolated
115... 230 VAC
Analog inputs
NTC333333
NTC/4-20 mA111111
Digital inputs
non optoisolated free of voltage contacts666666
Analog outputs
PWM/0-10V/phase cutting222222
Digital outputs (electromechanical relays; res. A @ 250 VAC)
2 A SPST44
3 A SPST  2222
8 A SPDT  1111
12 A SPST  1111
Digital outputs (triac; A res. @ 250 VAC)
200 mA 1
2 A 1
Digital outputs (open collector)
12 VDC, 40 mA max  1111
Communication ports
INTRABUS voltage driven
MODBUS slave RS-485
Other features
real time clock
alarm buzzer

Notes
None.

Available options
None.

I/O configuration

The table below shows the I/O configuration for chillers with 2 compressors.
Compressor 1 and the fan can be managed with an on-off or modulating system.
For managing the second compressor it is necessary to use models with triac or open collector digital outputs.

EV3 CHILEVD CHIL
Analog inputs
AI1condensation temperature/pressure
AI2plant circuit return temperature
AI3plant circuit supply temperature
AI4discharge temperature
Digital inputs
DI1plant circuit flow switch
DI2on/off
DI3fan thermal switch
DI4compressor 1 thermal switch
DI5high pressure switch
DI6low pressure switch
Analog outputs
AO1compressor 1
AO2fan
Digital outputs (electromechanical relays)
DO1alarm
DO2fan enabling
DO3plant circuit pump
DO4compressor 1 enabling
Digital outputs (triac)
TK1compressor 2
TK2fan
Digital outputs (open collector)
OC1compressor 2
