Thermotimers for electric ovens, controllers for electric bread, pizza, pastry and combi ovens

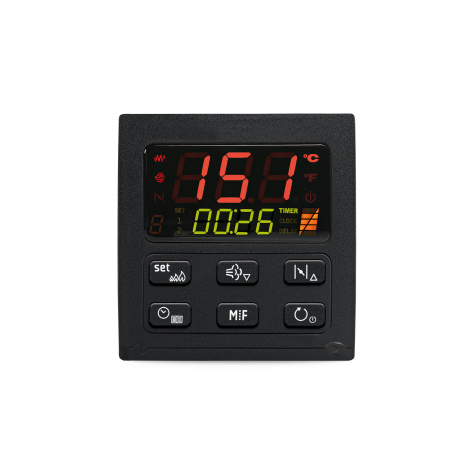

EV9 300 series is a range of thermotimers and controllers for the management of different typologies of electric ovens.
Available in compact 96 x 96 mm format. The user interface consists of a 2-line display with function icons, 6 keys and IP54 protection for easy cleaning.
Some controllers are able to manage the power supplied to the top and floor independently or the top temperature and the floor temperature, to manage different typologies of electric ovens.
Others also have the full steam management (generation, injection and airhole), both in automatic and manual mode, the “programmed weekly switch on”, “cooking timer” and “programs” functions (this last to store the cooking settings in a program to be selected and run later on) and energy saving strategies.
The controller is built into the front of the panel with screwed-in brackets.
Technical sheet
Generate PDF

Advantages & Main Features

Variety of models for different typologies of electric ovens.
MODBUS TTL communication port for EVKEY programming key and for other EVCO products.
Models with “programmed weekly switch on” function.
Models with energy saving strategies.
Models with independent management of the power supplied to the top and floor.
Models with independent management of the top temperature and floor temperature.
Models with full steam management (generation, injection and airhole), both in automatic and manual mode.
Models with “cooking timer” function.
Models with “programs” function (to store the cooking settings in a program to be selected and run later on).

Technical Features

Thermotimers

EV9303J9EV9313J9
Other features
“cooking timer” function
output for external alarm buzzer
real time clock
alarm buzzer
“Weekly programmed switch on” function
Power supply
115... 230 VAC
Analog inputs
room probe (J/K)
Digital inputs (for NA/NC contact)
multipurpose
Digital outputs (electromechanical relays; res. A @ 250 VAC)
load 1 (default temperature regulation) (1)8 A8 A
load 2 (default air vent) (1)8 A8 A
load 3 (default steam injection) (1)8 A8 A
Communication ports
MODBUS TTL, for EVKEY programming key and for other EVCO products

Notes
(1)configurable for temperature regulation, airhole, steam injection, alarm, room light, cooking timer or acoustic.

Available options
None.

“Top-floor” controllers for electric bread and pizza ovens

EV9323J9EV9326J9EV9336J9
Communication ports
MODBUS TTL, for EVKEY programming key and for other EVCO products
Other features
real time clock
alarm buzzer
“cooking timer” function
“programs” function
“energy saving” function
“quick heating” function
output for external alarm buzzer
independent management of the top and floor temperature
independent management of the power supplied to the top and the floor
“Weekly programmed switch on” function
Analog inputs
probe 2 (J/K) (1)
floor probe (J/K)
probe 1 (J/K) (2)
Digital inputs (for NA/NC contact)
multipurpose
on/stand-by (230 VAC)
Digital outputs (electromechanical relays; res. A @ 250 VAC)
top 8 A8 A
floor 8 A8 A
steam injection 8 A8 A
air vent 8 A8 A
load 1 (default top) (3)8 A
load 2 (default floor) (3)8 A
load 3 (default steam injection) (3)8 A
load 3 (default room light) (4) 8 A8 A
load 6 (default steam generator) (4) 8 A8 A
Power supply
115... 230 VAC

Notes
(1)configurable for steam probe or floor probe
(2)configurable for room probe or top probe
(3)configurable for top, floor, airhole, steam injection, alarm, room light, cooking timer or acoustic
(4)configurable for room light, steam generator, alarm, cooking timer, acoustic or on/stand-by.

Available options
None.

“Top-floor” controllers for electric pizza ovens

EV9346J9
Power supply
115... 230 VAC
Analog inputs
probe 1 (J/K) (1)
floor probe (J/K)
Digital inputs (for NA/NC contact)
multipurpose
on/stand-by (230 VAC)
Digital outputs (electromechanical relays; res. A @ 250 VAC)
top8 A
floor8 A
alarm8 A
room light8 A
acoustic8 A
on/stand-by8 A
Communication ports
MODBUS TTL, for EVKEY programming key and for other EVCO products
Other features
alarm buzzer
output for external alarm buzzer
independent management of the power supplied to the top and the floor
independent management of the top and floor temperature
“quick heating” function

Notes
(1)configurable for room probe or top probe.

Available options
None.

Controllers for electric pastry ovens

EV9316J9EV9316C9
Power supply
115... 230 VAC
Analog inputs
room probe (J/K)
room probe (2 wires Pt 100)
Digital inputs (for NA/NC contact)
multipurpose
on/stand-by (230 VAC)
Digital outputs (electromechanical relays; res. A @ 250 VAC)
load 1 (default temperature regulation) (1)8 A8 A
load 2 (default cooking timer) (1)8 A8 A
load 3 (default acoustic) (1)8 A8 A
load 4 (default air vent) (1)8 A8 A
load 5 (default steam injection) (1)8 A8 A
load 6 (default on/stand-by) (1)8 A8 A
Communication ports
MODBUS TTL, for EVKEY programming key and for other EVCO products
Other features
real time clock
alarm buzzer
output for external alarm buzzer
“Weekly programmed switch on” function
“cooking timer” function

Notes
(1)configurable for temperature regulation, cooking timer, acoustic, airhole, steam injection, on/stand-by, alarm or room light.

Available options
None.

Controllers for electric combi ovens

EV9376J9EV9376C9
Power supply
115... 230 VAC
Analog inputs
room probe (J/K)
room probe (2 wires Pt 100)
needle probe (J/K)
needle probe (2 wires Pt 100)
Digital inputs (for NA/NC contact)
multipurpose
on/stand-by (230 VAC)
Digital outputs (electromechanical relays; res. A @ 250 VAC)
temperature regulation8 A8 A
grill8 A8 A
steam injection8 A8 A
fan8 A8 A
load 3 (default air vent)8 A8 A
load 6 (default fan reversal)8 A8 A
Communication ports
MODBUS TTL, for EVKEY programming key and for other EVCO products
Other features
real time clock
alarm buzzer
output for external alarm buzzer
management of time controlled, at core, with steam, with grill and continuous cooking cycles
“Weekly programmed switch on” function
“programs” function

Notes
None.

Available options
None.
