Vcolor 579/589

Vcolor 579/589

Controllers for aging and/or meat dry-aging cabinets and rooms
The Vcolor 579/589 controller can be programmed via parameter to manage the aging process only, meat dry-aging only or both. It has 3 analogue inputs for temperature, 1 analogue input for 4… 20 mA humidity transducers (which can also be used to read pH), 9 fully configurable digital outputs (which can be expanded to 13) and 1 modulating output which gives control of up to 10 evaporator fan speeds (the evaporator fan can alternatively be modulated using an EVCO inverter). In the Vcolor589 models, the modulating output can also be set to control variable speed compressors. The controller's firmware can control an ultrasonic humidifier from the Mistral series via the RS-485 serial port.
Intuitive user interfaces (with 5 pre-set + 4 freely configurable food categories) can be personalised to meet users’ needs, making the controller both versatile and easy to use. Users can access a total of 30 meat dry-aging and aging programmes (each of the aging programmes has 30 sequential phases whose duration, temperature, humidity and ventilation can be fully configured). The controller also has manual preservation cycles, automatic air exchange and pause/work cycles and optional sanitation cycles (using UV lamps or ozone) and product smoking cycles which can be managed either automatically or manually.
The controller’s innovative programmable platform gives manufacturers the freedom to personalise the graphic skin and programmes and add new languages. All they have to do is compile an ODS file and upload it using a flash drive to the USB port on the user interface.
Users can interact remotely with their equipment, including starting/stopping working cycles, using the EPoCA® cloud platform with Wi-Fi or Ethernet connectivity (which also enables alternative or parallel control through MODBUS TCP). For more details, compare all the connectivity options in the Technical Data table and consult our website.

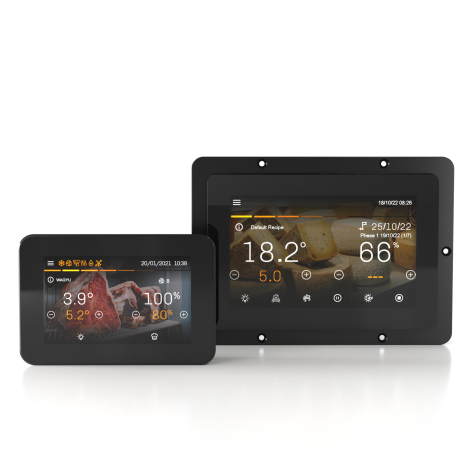

The controller has an open frame board and a remote user interface which consists of a 5-inch (M) or 7-inch (L) capacitive TFT touch-screen graphic display in glass which is installed horizontally either semi-recessed into the front or flush with the panel.
Technical sheet
Generate PDF

Advantages & Main Features

Graphic skin, programmes and languages easily personalised via USB
Interaction with the unit from the Internet through the EPoCA cloud platform
It can be connected to an EVCO inverter to improve ventilation efficiency
Control of a Mistral ultrasonic humidifier via the RS-485 serial port
Can be set for managing aging processes only, meat dry-aging only or both processes
9 food categories and 30 programmes (with 30 configurable phases each in case of aging programmes)
Air exchange and pause-work automatic cycles, sanitation and smoking optional cycles
9 HC relay outputs, further expandable to 13
Modulating output for compressor or fan speed control
5-inch or 7-inch capacitive TFT touch-screen graphic display in glass
Recessed or flush-fit panel mounting

Technical Features

Controllers for aging and/or meat dry-aging cabinets and rooms

Vcolor 579Vcolor 589
5-inch capacitive TFT touch-screen graphic display in glass
7-inch capacitive TFT touch-screen graphic display in glass
115... 230 VAC
12 VAC additional power supply for the user interface
Cabinet probe (PTC/NTC)
Evaporator probe (PTC/NTC)
Condenser probe (PTC/NTC)
Humidity transducer (4-20 mA)
Door switch
Configurable Multifuncton 1 (default Compressor Thermal Alarm)
Configurable Multifunction 2 (default High Pressure Alarm)
Configurable Multifunction 3 (default Low Pressure Alarm)
Configurable as 0-10 V for modulation of evaporator fan or in frequency for variable speed compressor
Configurable as PWM for EVDFAN1 speed regulator (evaporator fan)
DIGITAL OUTPUTS (full-sealed relays; A res. @ 250 VAC)
Configurable (default compressor)16 A16 A16 A16 A
Configurable (default cabinet light)8 A8 A8 A8 A
Configurable (default humidifier)8 A8 A8 A8 A
Configurable (default air exchange)8 A8 A8 A8 A
Configurable (default heaters)8 A8 A8 A8 A
Configurable (default alarm)16 A16 A16 A16 A
Configurable (default condenser fans)16 A16 A16 A16 A
Configurable (default pump down)8 A8 A8 A8 A
Configurable (default defrost)8 A8 A8 A8 A
RS-485 MODBUS RTU (built-in)
Wi-Fi EPoCA/MODBUS TCP (optional through the EVlinking Wi-Fi module powered by controller)
Ethernet EPoCA/MODBUS TCP (optional through the gateway EV3 Web)
Alarm buzzer
Available options
For other models please contact the EVCO sales network.
