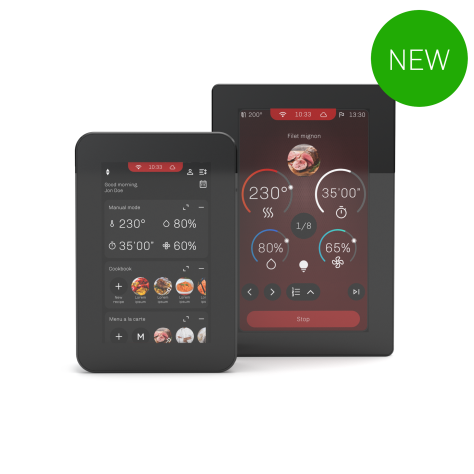

| módulo de control | 7" user interface | 9" user interface |
| EVCLP36FJ2E | EVCLP36FC2E | EVO300LV2 | EVO310LV2 | EVO320LV2 | EVO300XV2 | EVO310XV2 | EVO320XV2 |
| Alimentación |
| control module | 12 VAC | 12 VAC | | | | | | |
| interfaz usuario alimentada por el módulo de control | | | • | • | • | • | • | • |
| Entradas analógicas |
| needle probe (J/K) | • | | | | | | | |
| sonda cámara (J/K) | • | | | | | | | |
| sonda enfriamiento vapores (J/K) | • | | | | | | | |
| sonda caldera (J/K) | • | | | | | | | |
| neele probe (Pt 100 2 wires) | | • | | | | | | |
| sonda cámara | | • | | | | | | |
| sonda enfriamiento vapores (Pt 100 2 cables) | | • | | | | | | |
| sonda caldera (Pt 100 2 cables) | | • | | | | | | |
| Entradas digitales (para contacto NA/NC) |
| micro-interruptor puerta | • | • | | | | | | |
| rack presence | • | • | | | | | | |
| fan safety thermostat (230 VAC) | • | • | | | | | | |
| protección térmica (230 VAC) | • | • | | | | | | |
| maximum electrical absorption (230 VAC) | • | • | | | | | | |
| Salidas analógicas |
| 0-10 V (ventilador) | • | • | | | | | | |
| Configurable digital outputs (electromechanical relays; res. A @ 250 VAC) |
| load 1 (default heating) | • | • | | | | | | |
| load 2 (default air vent) | • | • | | | | | | |
| load 3 (default fume reduction) | • | • | | | | | | |
| Load 4 (not configured) | • | • | | | | | | |
| load 5 (default single-speed chamber fan) | • | • | | | | | | |
| load 6 (default suction hood) | • | • | | | | | | |
| load 7 (default electronics compartment fan) | • | • | | | | | | |
| load 8 (default direct steam injection) | • | • | | | | | | |
| load 9 (default booster heating) | • | • | | | | | | |
| load 10 (default smoking) | • | • | | | | | | |
| load 11 (default chamber light) | • | • | | | | | | |
| load 12 (default liquid rinse aid injection) | • | • | | | | | | |
| load 13 (default water drain) | • | • | | | | | | |
| load 14 (liquid detergent injection default) | • | • | | | | | | |
| load 15 (default water injection) | • | • | | | | | | |
| Other outputs |
| audio output for external buzzer | • | • | | | | | | |
| audio output for external speaker | | | • | • | • | • | • | • |
| Puertos de comunicación |
| RS-485 MODBUS | • | • | | | | | | |
| USB (for software updates) | • | • | • | • | • | • | • | • |
| USB-C (for EVCO internal use only) | | | • | • | • | • | • | • |
| Ethernet | | | • | | • | • | | • |
| Wi-Fi | | | | • | • | | • | • |
| Otras características |
| reloj | | | • | • | • | • | • | • |
| |
| Notas |
| Ninguna. |
| |
| Opciones disponibles |
|
Manual del instalador EVCLP36FC2E
