| EVYB13LN9 | EVYB14LN9 | EVYB15LN9 | EVYB33LN9 | EVYB34LN9 | EVYB35LN9 | EVYB35LN9VFT |
| ANZEIGE |

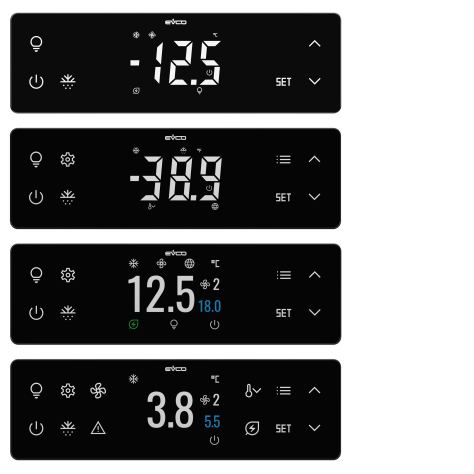

| LED display, 3+3 backlit capacitive keys | • | • | • | • | • | • | • |
| STROMVERSORGUNG |
| 115... 230 VAC | • | • | • | • | • | • | • |
| ANALOGE EINGÄNGE (konfigurierbar) |
| Default cabinet probe (PTC/NTC/Pt 1000) | • | • | • | • | • | • | • |
| Default evaporator probe (PTC/NTC/Pt 1000) | • | • | • | • | • | • | • |
| Default condenser probe (PTC/NTC/Pt 1000) | • | • | • | • | • | • | • |
| INGRESSI DIGITALI (a contatto pulito) |
| Mikroschalter Tür | • | • | • | • | • | • | • |
| Multifunktion | • | • | • | • | • | • | • |
| DIGITAL OUTPUTS (full-sealed relays; A res. @ 250 VAC) |
| Konfigurierbar (Default Kompressor) | 16 A | 16 A | 16 A | 30 A | 30 A | 30 A | 30 A |
| Konfigurierbar (Default Verdampfer-Lüfter) | 8 A | 8 A | 8 A | 8 A | 8 A | 8 A | 8 A |
| Konfigurierbar (Default Alarm) | 8 A | 8 A | 8 A | 8 A | 8 A | 8 A | 8 A |
| Konfigurierbar (Default Zellenlicht) | | 8 A | 8 A | | 8 A | 8 A | 8 A |
| Konfigurierbar (Default Abtauung) | | | 8 A | | | 8 A | 8 A |
| ALTRE USCITE |
| Configurable for PWM (variable speed compressors) or 0-10 V (variable speed compressors or modulating fans) | • | • | • | • | • | • | • |
| COM-PORTS |
| TTL MODBUS | • | • | • | • | • | • | • |
| Für Fernanzeige | | | | | | | • |
| CONNECTIVITY |
| RS-485 MODBUS RTU (optional through the EVlinking RS-485 module) | • | • | • | • | • | • | • |
| Bluetooth Low Energy for EVconnect app (optional through the EVlinking BLE module) | • | • | • | • | • | • | • |
| Wi-Fi epoca3.io/MODBUS TCP (optional through the EVlinking Wi-Fi or EVlinking Ethernet/Wi-Fi modules powered by the controller) | • | • | • | • | • | • | • |
| Ethernet epoca3.io/MODBUS TCP (optional through the EVCO gateways EV3 Web and EVD Web or the EVlinking Ethernet/Wi-Fi modules) | • | • | • | • | • | • | • |
| ANDERE DATEN |
| Alarm-Summer | • | • | • | • | • | • | • |
| |
| Hinweise |
| Keine. |
| |
| Verfügbare Optionen |
|
| EVY216LN9 | EVY236LN9 | EVY236LN9XFT |
| ANZEIGE |
| LED display, 4+4 backlit capacitive keys | • | • | • |
| STROMVERSORGUNG |
| 115... 230 VAC | • | • | • |
| ANALOGE EINGÄNGE (konfigurierbar) |
| Default cabinet probe (PTC/NTC/Pt 1000) | • | • | • |
| Default evaporator probe (PTC/NTC/Pt 1000) | • | • | • |
| Default condenser probe (PTC/NTC/Pt 1000) | • | • | • |
| INGRESSI DIGITALI (a contatto pulito) |
| Mikroschalter Tür | • | • | • |
| Multifunktion 1 | • | • | • |
| Multifunktion 2 | • | • | • |
| KONFIGURIERBARE EINGÄNGE (ANALOGE ODER DIGITALE) |
| Analoger Eingang (PTC/NTC/Pt 1000) oder digitaler Eingang (spannungsfreier Kontakt) | • | • | • |
| DIGITAL OUTPUTS (full-sealed relays; A res. @ 250 VAC) |
| Konfigurierbar (Default Kompressor) | 16 A | 30 A | 30 A |
| Konfigurierbar (Default Verdampfer-Lüfter) | 8 A | 8 A | 8 A |
| Konfigurierbar (Default Alarm) | 8 A | 8 A | 8 A |
| Konfigurierbar (Default Zellenlicht) | 8 A | 8 A | 8 A |
| Konfigurierbar (Default Abtauung) | 8 A | 8 A | 8 A |
| Configurable (default on/stand-by) | 16 A | 16 A | 16 A |
| ALTRE USCITE |
| Configurable for PWM (variable speed compressors) or 0-10 V (variable speed compressors or modulating fans) | 3 | 3 | 3 |
| COM-PORTS |
| TTL MODBUS | • | • | • |
| Für Fernanzeige | | | • |
| CONNECTIVITY |
| RS-485 MODBUS RTU (optional through the EVlinking RS-485 module) | • | • | • |
| Bluetooth Low Energy for EVconnect app (optional through the EVlinking BLE module) | • | • | • |
| Wi-Fi epoca3.io/MODBUS TCP (optional through the EVlinking Wi-Fi or EVlinking Ethernet/Wi-Fi modules powered by the controller) | • | • | • |
| Ethernet epoca3.io/MODBUS TCP (optional through the EVCO gateways EV3 Web and EVD Web or the EVlinking Ethernet/Wi-Fi modules) | • | • | • |
| ANDERE DATEN |
| Alarm-Summer | • | • | • |
| |
| Hinweise |
| Keine. |
| |
| Verfügbare Optionen |
|
| EVY216DN9 | EVY236DN9 | EVY236DN9PFT | EVY218DN3 | EVY238DN3 | EVY238DN3PFT |
| ANZEIGE |
| 2.4" LCD colour graphic display, 4+4 backlit capacitive keys | • | • | • | | | |
| 2.4" LCD colour graphic display, 6+6 backlit capacitive keys | | | | • | • | • |
| STROMVERSORGUNG |
| 115... 230 VAC | • | • | • | | | |
| 12... 24 VDC | | | | • | • | • |
| ANALOGE EINGÄNGE (konfigurierbar) |
| Default cabinet probe (PTC/NTC/Pt 1000) | • | • | • | • | • | • |
| Default evaporator probe (PTC/NTC/Pt 1000) | • | • | • | • | • | • |
| Default condenser probe (PTC/NTC/Pt 1000) | • | • | • | • | • | • |
| INGRESSI DIGITALI (a contatto pulito) |
| Mikroschalter Tür | • | • | • | • | • | • |
| Multifunktion 1 | • | • | • | • | • | • |
| Multifunktion 2 | • | • | • | • | • | • |
| Multifunktion 3 | • | • | • | • | • | • |
| KONFIGURIERBARE EINGÄNGE (ANALOGE ODER DIGITALE) |
| Analoger Eingang (PTC/NTC/Pt 1000) oder digitaler Eingang (spannungsfreier Kontakt) | • | • | • | • | • | • |
| DIGITAL OUTPUTS (full-sealed relays; A res. @ 250 VAC) |
| Konfigurierbar (Default Kompressor) | 16 A | 30 A | 30 A | 16 A | 30 A | 30 A |
| Konfigurierbar (Default Verdampfer-Lüfter) | 8 A | 8 A | 8 A | 8 A | 8 A | 8 A |
| Konfigurierbar (Default Alarm) | 8 A | 8 A | 8 A | 8 A | 8 A | 8 A |
| Konfigurierbar (Default Zellenlicht) | 8 A | 8 A | 8 A | 8 A | 8 A | 8 A |
| Konfigurierbar (Default Abtauung) | 8 A | 8 A | 8 A | 8 A | 8 A | 8 A |
| Configurable (default on/stand-by) | 16 A | 16 A | 16 A | 16 A | 16 A | 16 A |
| Configurable (default auxiliary load 1) | | | | 16 A | 16 A | 16 A |
| Configurable (default auxiliary load 2) | | | | 8 A | 8 A | 8 A |
| ALTRE USCITE |
| Configurable for PWM (variable speed compressors) or 0-10 V (variable speed compressors or modulating fans) | 3 | 3 | 3 | 3 | 3 | 3 |
| 12... 24 VDC for control of LED lamps up to 25 W and 50 W | | | | 2 | 2 | 2 |
| COM-PORTS |
| TTL MODBUS | • | • | • | • | • | • |
| USB-C | • | • | • | • | • | • |
| Für Fernanzeige | | | • | | | • |
| CONNECTIVITY |
| RS-485 MODBUS RTU (optional through the EVlinking RS-485 module) | | | | | | |
| Bluetooth Low Energy for EVconnect app (optional through the EVlinking BLE module) | • | • | • | • | • | • |
| Wi-Fi epoca3.io/MODBUS TCP (optional through the EVlinking Wi-Fi or EVlinking Ethernet/Wi-Fi modules powered by the controller) | • | • | • | • | • | • |
| Ethernet epoca3.io/MODBUS TCP (optional through the EVCO gateways EV3 Web and EVD Web or the EVlinking Ethernet/Wi-Fi modules) | • | • | • | • | • | • |
| ANDERE DATEN |
| Alarm-Summer | • | • | • | • | • | • |
| |
| Hinweise |
| Keine. |
| |
| Verfügbare Optionen |
|
| EVYSB35LN9 | EVYSB35LN9EFT |
| ANZEIGE |
| LED display, 3+3 backlit capacitive keys | • | • |
| ANDERE DATEN |
| Alarm-Summer | • | • |
| STROMVERSORGUNG |
| 115... 230 VAC | • | • |
| ANALOGE EINGÄNGE (konfigurierbar) |
| Default cabinet probe (PTC/NTC/Pt 1000) | • | • |
| Default evaporator probe (PTC/NTC/Pt 1000) | • | • |
| Default condenser probe (PTC/NTC/Pt 1000) | • | • |
| INGRESSI DIGITALI (a contatto pulito) |
| Mikroschalter Tür | • | • |
| Multifunktion | • | • |
| DIGITAL OUTPUTS (full-sealed relays; A res. @ 250 VAC) |
| Konfigurierbar (Default Alarm) | 8 A | 8 A |
| Konfigurierbar (Default Verdampfer-Lüfter) | 8 A | 8 A |
| Konfigurierbar (Default Zellenlicht) | 16 A | 16 A |
| Konfigurierbar (Default Abtauung) | 16 A | 16 A |
| Konfigurierbar (Default Kompressor) | 30 A | 30 A |
| ALTRE USCITE |
| Configurable for PWM (variable speed compressors) or 0-10 V (variable speed compressors or modulating fans) | • | • |
| COM-PORTS |
| TTL MODBUS | • | • |
| Für Fernanzeige | | • |
| CONNECTIVITY |
| RS-485 MODBUS RTU (optional through the EVlinking RS-485 module) | • | • |
| Bluetooth Low Energy for EVconnect app (optional through the EVlinking BLE module) | • | • |
| Wi-Fi epoca3.io/MODBUS TCP (optional through the EVlinking Wi-Fi or EVlinking Ethernet/Wi-Fi modules powered by the controller) | • | • |
| Ethernet epoca3.io/MODBUS TCP (optional through the EVCO gateways EV3 Web and EVD Web or the EVlinking Ethernet/Wi-Fi modules) | • | • |
| |
| Hinweise |
| Keine. |
| |
| Verfügbare Optionen |
|
| EVYS236LN9 |
| ANZEIGE |
| LED display, 4+4 backlit capacitive keys | • |
| STROMVERSORGUNG |
| 115... 230 VAC | • |
| ANALOGE EINGÄNGE (konfigurierbar) |
| Default cabinet probe (PTC/NTC/Pt 1000) | • |
| Default evaporator probe (PTC/NTC/Pt 1000) | • |
| Default condenser probe (PTC/NTC/Pt 1000) | • |
| INGRESSI DIGITALI (a contatto pulito) |
| Mikroschalter Tür | • |
| Multifunktion 1 | • |
| Multifunktion 2 | • |
| KONFIGURIERBARE EINGÄNGE (ANALOGE ODER DIGITALE) |
| Analoger Eingang (PTC/NTC/Pt 1000) oder digitaler Eingang (spannungsfreier Kontakt) | • |
| DIGITAL OUTPUTS (full-sealed relays; A res. @ 250 VAC) |
| Konfigurierbar (Default Kompressor) | 30 A |
| Konfigurierbar (Default Abtauung) | 16 A |
| Konfigurierbar (Default Verdampfer-Lüfter) | 8 A |
| Konfigurierbar (Default Zellenlicht) | 8 A |
| Configurable (default on/stand-by) | 16 A |
| Konfigurierbar (Default Alarm) | 8 A |
| ALTRE USCITE |
| Configurable for PWM (variable speed compressors) or 0-10 V (variable speed compressors or modulating fans) | • |
| COM-PORTS |
| TTL MODBUS | • |
| Für Fernanzeige | • |
| CONNECTIVITY |
| RS-485 MODBUS RTU (optional through the EVlinking RS-485 module) | • |
| Bluetooth Low Energy for EVconnect app (optional through the EVlinking BLE module) | • |
| Wi-Fi epoca3.io/MODBUS TCP (optional through the EVlinking Wi-Fi or EVlinking Ethernet/Wi-Fi modules powered by the controller) | • |
| Ethernet epoca3.io/MODBUS TCP (optional through the EVCO gateways EV3 Web and EVD Web or the EVlinking Ethernet/Wi-Fi modules) | • |
| ANDERE DATEN |
| Alarm-Summer | • |
| |
| Hinweise |
| Keine. |
| |
| Verfügbare Optionen |
|
| EVYS236DN9 | EVYS238DN9 |
| ANZEIGE |
| 2.4" LCD colour graphic display, 4+4 backlit capacitive keys | • | |
| 2.4" LCD colour graphic display, 6+6 backlit capacitive keys | | • |
| STROMVERSORGUNG |
| 115... 230 VAC | • | |
| ANALOGE EINGÄNGE (konfigurierbar) |
| Default cabinet probe (PTC/NTC/Pt 1000) | • | |
| Default evaporator probe (PTC/NTC/Pt 1000) | • | |
| Default condenser probe (PTC/NTC/Pt 1000) | • | |
| INGRESSI DIGITALI (a contatto pulito) |
| Mikroschalter Tür | • | |
| Multifunktion 1 | • | |
| Multifunktion 2 | • | |
| KONFIGURIERBARE EINGÄNGE (ANALOGE ODER DIGITALE) |
| Analogue input (NTC/PTC/Pt 1000) or digital input (multi-purpose) | • | |
| DIGITAL OUTPUTS (full-sealed relays; A res. @ 250 VAC) |
| Konfigurierbar (Default Kompressor) | 30 A | 30 A |
| Konfigurierbar (Default Abtauung) | 16 A | 16 A |
| Konfigurierbar (Default Verdampfer-Lüfter) | 8 A | 8 A |
| Konfigurierbar (Default Zellenlicht) | 8 A | 8 A |
| Configurable (default on/stand-by) | 16 A | 16 A |
| Konfigurierbar (Default Alarm) | 8 A | 8 A |
| Configurable (default auxiliary load 1) | | 16 A |
| Configurable (default auxiliary load 2) | | 8 A |
| ALTRE USCITE |
| Configurable for PWM (variable speed compressors) or 0-10 V (variable speed compressors or modulating fans) | 3 | 3 |
| COM-PORTS |
| TTL MODBUS | • | • |
| USB-C | • | • |
| Für Fernanzeige | • | • |
| CONNECTIVITY |
| RS-485 MODBUS RTU (optional through the EVlinking RS-485 module) | • | • |
| Bluetooth Low Energy for EVconnect app (optional through the EVlinking BLE module) | • | • |
| Wi-Fi epoca3.io/MODBUS TCP (optional through the EVlinking Wi-Fi or EVlinking Ethernet/Wi-Fi modules powered by the controller) | • | • |
| Ethernet epoca3.io/MODBUS TCP (optional through the EVCO gateways EV3 Web and EVD Web or the EVlinking Ethernet/Wi-Fi modules) | • | • |
| ANDERE DATEN |
| Alarm-Summer | • | • |
| |
| Hinweise |
| Keine. |
| |
| Verfügbare Optionen |
|
