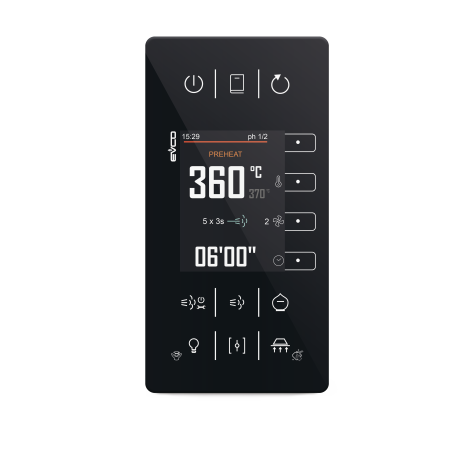

Controller for bread and pastry convection ovens
EV8 338 is a compact controller in standard 72x144 mm format with a 2.8 inch LCD colour display and 13 capacitive keys, suitable for managing different kinds of bread and pastry convection ovens.
Cooking can be optimally adjusted, thanks to the proportional-integral temperature control, complete management of steam generation, injection and extraction in direct mode and fan management with reversal of the direction at single, double and variable speed.
Recipes and languages can be personalised by the user by simply compiling a spreadsheet file which is then uploaded to the oven’s controller via the USB port.
Users can interact remotely with their equipment using the EPoCA® cloud platform with Wi-Fi or Ethernet connectivity (which also enables alternative or parallel control through MODBUS TCP). Onsite, they can interact from a mobile device with the EVconnect® app which uses Bluetooth Low Energy connectivity. For more details, compare all the connectivity options in the Technical Data table and consult the sections of our website: Products/ Management and Monitoring Systems and Products/ Connectivity Devices.
Technical sheet
Generate PDF

Advantages & Main Features

Recipes and languages can be personalised uploading a spreadsheet via USB port
Interaction with the unit from mobile devices through the EVconnect app or from the Internet through the EPoCA cloud platform
Proportional-integral (PI) temperature control
Complete management of steam generation/injection/extraction in direct mode
Fan management with reversal of the direction at single, double and variable speed
Standard 72x144 mm format
2.8 inch LCD colour graphic display
13 capacitive keys

Technical Features

Controller for bread and pastry convection ovens

EV8338J4EV8338J9
DISPLAY
2.8 inch LCD colour graphic display
POWER SUPPLY
24 VAC
115... 230 VAC
ANALOGUE INPUTS
Chamber probe (J/K/2 wires Pt 100)
DIGITAL INPUTS
Multi-purpose 1
Multi-purpose 2
CONFIGURABLE INPUTS (ANALOGUE OR DIGITAL)
Analogue input (J/K/2 wires Pt 100) or digital input (multi-purpose 3)
ANALOGUE OUTPUTS
Fan (PWM)
DIGITAL OUTPUTS (electro-mechanical relays; A res. @ 250 VAC)
Suction hood (configurable)16 A16 A
Steam injection (configurable)8 A8 A
electronics compartment fan (configurable)8 A8 A
Chamber light (configurable)8 A8 A
Temperature regulation (configurable)8 A8 A
Economy (configurable)16 A16 A
Fan left rotation (configurable)8 A8 A
Fan right rotation (configurable)8 A8 A
COMMUNICATIONS PORTS
MODBUS TTL
USB
CONNECTIVITY
RS-485 MODBUS RTU (optional through the EVlinking RS-485 module)
Bluetooth Low Energy for EVconnect app (optional through the EVlinking BLE module)
Wi-Fi EPoCA/MODBUS TCP (optional through the EVlinking Wi-Fi module powered by controller)
Wi-Fi EPoCA/MODBUS TCP (optional through the EVlinking Wi-Fi module with separate 12 Vac/15 Vdc power supply)
Ethernet EPoCA/MODBUS TCP (optional through the controller/gateway EV3 200 Web)
OTHER STANDARD FEATURES
Alarm buzzer
Clock

Notes
None.

Available options
None.
