Vcolor 368/369

Vcolor 368/369

Controllers for combination ovens for gastronomy and pastry-making
The Vcolor 368 controller manages all the most advanced functions of gastronomy and pastry-making combination ovens, whether they are electric or gas and use either direct steam injection or an external boiler. For greater efficiency, an EVCO inverter can be added to models Vcolor 369 to modulate fan speed.
The controller has a complete steam management system (direct generation, injection and venting) in both automatic and manual mode; if the steam is generated by an external boiler, it can also control functions such as water charge and discharge, boiler rinsing and cleaning. It also manages the washing cycle with either liquid or tablet detergents.
Manufacturers can enter up to 72 OEM programmes (divided into 4/8 categories), while end users can store cooking cycle settings from the controller, creating up to 48 recipes. The controller’s innovative programmable platform gives manufacturers the freedom to personalise the graphic skin and OEM recipes and add new languages. All they have to do is compile an ODS file and upload it to the oven’s controller using a flash drive, thanks to the USB port on the user interface.
Users can interact remotely with their equipment, including starting/stopping working cycles, using the EPoCA® cloud platform with Wi-Fi or Ethernet connectivity (which also enables alternative or parallel control through MODBUS TCP). For more details, compare all the connectivity options in the Technical Data table and consult the sections of our website: Products/ Management and Monitoring Systems and Products/ Connectivity Devices.

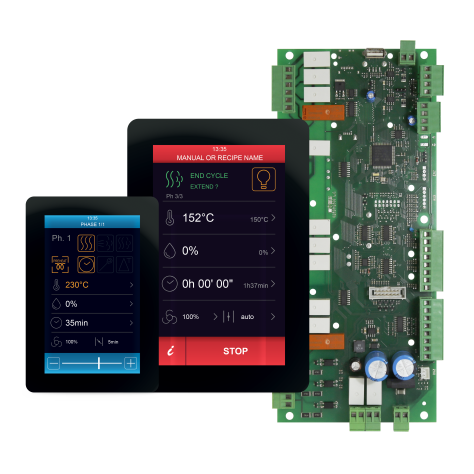

Available in a split 5 or 7-inch version with a capacitive colour TFT touch-screen graphic display, the user interface can be installed recessed from the front or flush with the panel, thus making it fit perfectly with the design of the unit.
Technical sheet
Generate PDF

Watch the tutorial video to personalise recipes, graphics and languages.

Advantages & Main Features

Dedicated platform to personalise graphics, languages and recipes.
Interaction with the unit from the Internet through the EPoCA cloud platform.
Some models can be connected to an EVCO inverter to improve ventilation efficiency.
Steam generation in direct mode or through the use of an external boiler module.
Management of gas ovens using an external burners module.
Washing management with both liquid detergent and tab.
Capacitive TFT touch-screen graphic display, 65K colours, 800 x 480 pixel resolution.
Recessed or flush-fit panel mounting.
5 or 7-inch format.

Technical Features

Vcolor 368 models

Vcolor 368 M
Vcolor 368 L
Power supply
control module12 VAC12 VAC12 VAC12 VAC
user interface (powered by the control module)
Analog inputs
chamber probe (J/K)
needle probe (J/K)
fume probe (J/K)
boiler probe (J/K)
chamber probe (2 wires Pt 100)
neele probe (Pt 100 2 wires)
fume probe (2 wires Pt 100)
boiler probe (Pt 100 2 wires)
Digital inputs (for NA/NC contact)
door switch
fan thermal switch (230 VAC)
thermal switch (230 VAC)
electrical absorption (230 VAC)
boiler water minimum level
boiler water maximum level
Analog outputs
0-10 V (fan)
Digital outputs (electromechanical relays; res. A @ 250 VAC)
temperature regulation1 A1 A1 A1 A
direct steam injection1 A1 A1 A1 A
air vent1 A1 A1 A1 A
chamber light1 A1 A1 A1 A
electronics compartment fan1 A1 A1 A1 A
suction hood1 A1 A1 A1 A
7 additional configurable outputs1 A1 A1 A1 A
Communication ports
RS-485 MODBUS RTU (built-in)
Wi-Fi EPoCA/MODBUS TCP (optional through the EVlinking Wi-Fi module powered by controller)
Ethernet EPoCA/MODBUS TCP (optional through the gateway EV3 Web)
Other features
real time clock
alarm buzzer
Available options
For other models please contact the EVCO sales network.
