Vcolor 378

Vcolor 378

Controllers for bread and pizza deck ovens

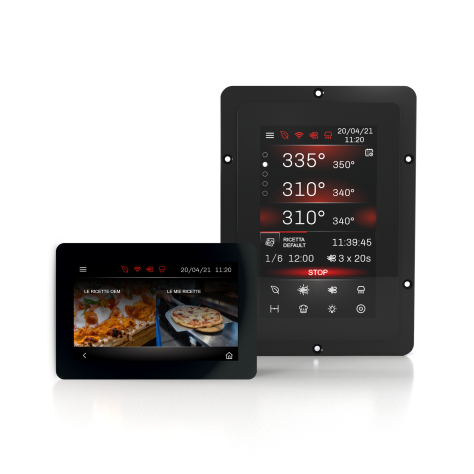

Vcolor 378 is a controller for electric bread and pizza deck ovens with a remote touch-screen user interface in 5- or 7-inch glass (available in both vertical and horizontal version) which fits in perfectly with the design of the unit. It can control up to 5 levels through an RS-485 network of power boards connected to a single user interface, which also allows centralised management with power shared between the decks. Centralised management can also be enabled by connecting control kits (interface + power board), one for each deck and up to a maximum of 5, via the RS-485 serial port.
It manages steam (generation, injection and venting) in both automatic and manual mode and independently regulates the power and temperature of the top, floor and front heating elements. Being able to control temperature of the front heating element is particularly important for certain baked goods. The controller has also an oven cleaning function which uses pyrolysis, a self-cleaning mechanism that does not require chemical detergents as food residue is oxidized at high temperature.
The controller can save up to 99 recipes; each recipe can have up to 8 phases, each with independent settings for duration, temperature, steam injection cycles, venting and suction. Recipes can be compiled in an ODS file (complete with pictures in BMP or GIF format) and uploaded to the controller using a USB flash drive, thanks to the innovative programmable platform which allows users to customise their recipes and add new languages. They can also be altered, overwritten and saved as favourites directly from the display. From the display, users can also programme, for every day of the week, the switching on and off of two different recipes.
Users can interact remotely with their equipment, including starting/stopping working cycles, using the EPoCA® cloud platform with Wi-Fi or Ethernet connectivity (which also enables alternative or parallel control through MODBUS TCP). For more details, compare all the connectivity options in the Technical Data table and consult our website.
Technical sheet
Generate PDF

Advantages & Main Features

Centralised energy-saving management with power shared between the decks
Control of up to 5 decks with the multi-base configuration (connecting more power boards to a single user interface) or with the multi-kit configuration (connecting more control kits via RS-485)
Graphic skin, recipes and languages easily personalised via USB
Interaction with the unit from the Internet through the EPoCA cloud platform
Independent regulation of the power or temperature of the top and floor heaters
Management of oven's front heating elements
Complete steam management (generation, injection and venting) in both automatic and manual mode
Pyrolytic self-cleaning
“Weekly programmed switch on” function
5-inch or 7-inch capacitive TFT touch-screen graphic display in glass, available in both vertical and horizontal version

Technical Features

Controllers for bread and pizza deck ovens

Vcolor 378 M L with thermocouples J/KVcolor 378 M L with Pt 100 2 wires
EVCMC37DJ2EEVCLC37DJ2EEVCMC37DC2EEVCLC37DC2E
DISPLAY
5-inch capacitive TFT touch-screen graphic display in glass
7-inch capacitive TFT touch-screen graphic display in glass
POWER SUPPLY
Control module12 VAC12 VAC12 VAC12 VAC
User interface (powered by the control module)
ANALOGUE INPUTS
Top probe (activated as chamber probe if regulation is by single analogue input)
Floor probe (deactivated if regulation is by single analogue input)
Steam probe
Front probe
DIGITAL INPUTS
Power consumption (230 Vac)
Thermal switch (230 Vac)
Type 1/2 burner fault (230 Vac)
Door switch
Enable steam injection
Switch off device
Energy saving
DIGITAL OUTPUTS (electro-mechanical relays; A res. @ 250 VAC)
Configurable (default top heaters)5 A5 A5 A5 A
Configurable (default stand-by/on)5 A5 A5 A5 A
Configurable (default floor heater)5 A5 A5 A5 A
Configurable(default floor front heater)5 A5 A5 A5 A
Configurable (default chamber light)5 A5 A5 A5 A
Configurable (default venting)5 A5 A5 A5 A
Configurable (default steam generation)5 A5 A5 A5 A
Configurable (default steam injection)5 A5 A5 A5 A
Configurable (default suction hood)8 A8 A8 A8 A
Configurable (default electronics compartment fan)5 A5 A5 A5 A
Configurable (default sound)5 A5 A5 A5 A
Configurable (default reset of burner block 1/2)5 A5 A5 A5 A
Configurable (default top front heater)8 A8 A8 A8 A
COMMUNICATIONS PORTS
MODBUS RS-485
USB
CONNECTIVITY
RS-485 MODBUS RTU (built-in)
Wi-Fi EPoCA/MODBUS TCP (optional through the EVlinking Wi-Fi module powered by controller)
Ethernet EPoCA/MODBUS TCP (optional through the EVCO gateways EV3 Web or EVD Web)
OTHER STANDARD FEATURES
Clock
Alarm buzzer

Notes
None.

Available options
For other models please contact the EVCO sales network.
