Controllers for electric or gas rotary ovens for bread and pastry-making

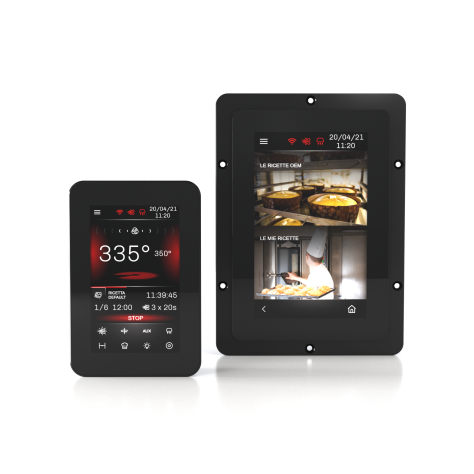

The Vcolor 358 controller is designed for electric or gas rotary ovens for bread and pastry-making and manages rack rotation both automatically and manually. With a stylish design and a remote touch-screen user interface in 5- or 7-inch glass, it can be installed semi-recessed into the front or flush with the panel using threaded studs.
The controller provides complete steam management (generation, injection and venting) in both automatic and manual mode and also using an external steam generator. The fan can be controlled in “on/off” mode at single or double speed or in modulating mode using analogue output 0… 10 Vdc or an EVCO inverter connected to the serial port.
The controller can save up to 99 recipes; each recipe can have up to 8 phases, each with independent settings for duration, temperature, steam injection cycles, venting and suction. Recipes can be compiled in an ODS file (complete with pictures in BMP or GIF format) and uploaded to the controller using a USB flash drive, thanks to the innovative programmable platform which allows users to customise their recipes and add new languages. Recipes can be altered, overwritten and saved as favourites directly from the display. The controller also has a deferred start function so, for every day of the week, users can programme the switching on and off of two different recipes.
Users can interact remotely with their equipment, including starting/stopping working cycles, using the EPoCA® cloud platform with Wi-Fi or Ethernet connectivity (which also enables alternative or parallel control through MODBUS TCP). For more details, compare all the connectivity options in the Technical Data table and consult the sections of our website: Products/ Management and Monitoring Systems and Products/ Connectivity Devices.
Technical sheet
Generate PDF

Advantages & Main Features

8 phases with independent settings of time, temperature, steam injection cycles, venting and suction hood
Graphic skin, recipes and languages easily personalised via USB
Interaction with the unit from the Internet through the EPoCA cloud platform
Rack rotation settings both automatic and manual
Modulating control of chamber fan via 0-10 V output or via serial connection with an EVCO inverter
Complete steam management (generation, injection and venting) in both automatic and manual mode
“Weekly programmed switch on” function
Relay for replicating the buzzer activations
5-inch or 7-inch capacitive TFT touch-screen graphic display in glass
Recessed or flush-fit panel mounting

Technical Features

Controllori per forni rotativi elettrici o a gas per panificazione e pasticceria

Vcolor 358 M L with thermocouples J/KVcolor 358 M L with Pt 100
EVCMC35DJ2EEVCLC35DJ2EEVCMC35DC2EEVCLC35DC2E
DISPLAY
5-inch capacitive TFT touch-screen graphic display in glass
7-inch capacitive TFT touch-screen graphic display in glass
POWER SUPPLY
Control module12 VAC12 VAC12 VAC12 VAC
User interface (powered by the control module)
ANALOGUE INPUTS
Chamber probe
Boiler probe
DIGITAL INPUTS
Power consumption (230 Vac)
Thermal switch (230 Vac)
Type 1/2 burner fault (230 Vac)
Door switch
Rack limit switch
Enable steam injection
Fan thermal switch
0-10 V ANALOGUE OUTPUT
Chamber fan
DIGITAL OUTPUTS (electro-mechanical relays; A res. @ 250 VAC)
Configurable (default chamber heating)5 A5 A5 A5 A
Configurable (default steam injection)5 A5 A5 A5 A
Configurable (default venting)5 A5 A5 A5 A
Configurable (default chamber light)5 A5 A5 A5 A
Configurable (default steam generation)5 A5 A5 A5 A
Configurable (default sound)5 A5 A5 A5 A
Configurable (default chamber fan single speed)5 A5 A5 A5 A
Configurable (default not used for k8)8 A8 A8 A8 A
Configurable (default not used for k9)5 A5 A5 A5 A
Configurable (default suction hood)5 A5 A5 A5 A
Configurable (default electronics compartment fan)5 A5 A5 A5 A
Configurable (default rack rotation)5 A5 A5 A5 A
Configurable (default stand-by/on)8 A8 A8 A8 A
COMMUNICATIONS PORTS
MODBUS RS-485
USB
CONNECTIVITY
RS-485 MODBUS RTU (built-in)
Wi-Fi EPoCA/MODBUS TCP (optional through the EVlinking Wi-Fi module powered by controller)
Ethernet EPoCA/MODBUS TCP (optional through the EVCO gateways EV3 Web or EVD Web)
OTHER FEATURES
Clock
Alarm buzzer

Notes
None.

Available options
For other models please contact the EVCO sales network.
